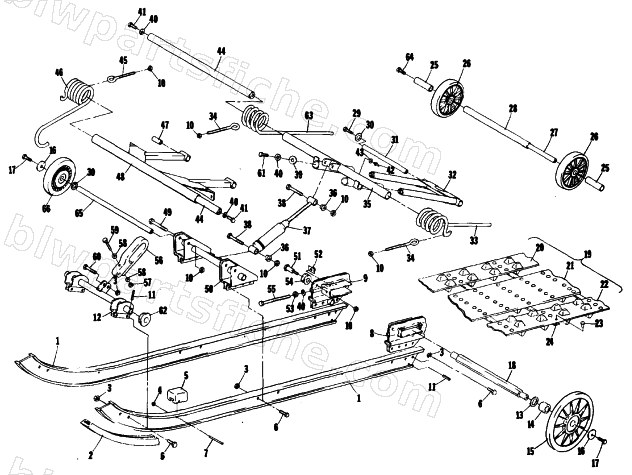

UNDERCARRIAGE AND TRACK
1979 LYNX TWIN
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0104-929 | SIDE RAIL,FORMED | 1 | $141.95 | |
| 3 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 4 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 5 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 6 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 7 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 10 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 11 | 8070-285 | PIN,SPRING-5/32 X 1-1/8 SLOTTED P&O | 1 | $1.95 | |
| 12 | 0704-627 | CROSSBRACE,FRONT-WELDMENT(0104-910) | 1 | $110.95 | |
| 13 | 0104-784 | WASHER,HEX .890 X 1.25 X 12 GA | 1 | $0.15 | |
| 14 | 0104-785 | SPACER,REAR AXLE | 1 | $15.11 | |
| 15 | 0114-210 | WHEEL,IDL 6.38(2-3/4DIA INSR) | 1 | $54.95 | |
| 17 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 18 | 0104-756 | AXLE,REAR | 1 | $180.95 | |
| 23 | 0123-729 | RIVET,SOLID .187X.562 STL | 1 | $1.78 | |
| 26 | 0104-930 | WHEEL IDLER 5-1/4 OD | 1 | $56.95 | |
| 28 | 0104-916 | SPACER,AXLE-INSIDE | 1 | $58.95 | |
| 29 | 8012-132 | SCREW,CAP-HHNLP 5/16-18X1.0 G5 Z&Y | 1 | $0.65 | |
| 30 | 0123-439 | WSHR,FLAT 21/32X1-1/8X.048 Z&Y | 1 | $0.40 | |
| 32 | 0104-790 | TELESCOPE REAR ARM | 1 | $149.95 | |
| 33 | 0104-895 | SPRING,REAR-LEFT | 1 | $18.95 | |
| 37 | 0114-124 | SHOCK ABSORBER,RR ARM | 1 | $99.95 | |
| 38 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 39 | 0123-570 | WASHER,FLAT .390X1.38X.134 | 1 | $5.92 | |
| 40 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 41 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 42 | 0104-062 | ZERK GREASE 1/4-28 | 1 | $1.23 | |
| 43 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 45 | 2272-037 | BOLT,CLOSED EYE,3/8-16UNC W | 1 | $20.95 | |
| 47 | 0104-629 | SPACER,FRONT ARM-PIVOT | 1 | $19.25 | |
| 48 | 0105-241 | ARM,FRONT-WELDMENT | 1 | $255.95 | |
| 49 | 8002-228 | SCREW,CAP-HH 3/8-16 X2.25 G5 Z&Y | 1 | $3.44 | |
| 51 | 0104-842 | BOLT,SHOULDER | 1 | $26.95 | |
| 52 | 0104-838 | PLATE & NUT-WELDMENT | 1 | $21.95 | |
| 53 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 55 | 0124-310 | HHCS 3/8-16X4.0 THREADED GR5 Z&Y | 1 | $2.47 | |
| 57 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 58 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 59 | 8002-048 | SCREW,CAP-HH 1/4-20 X2.25 G5 Z&Y | 1 | $0.68 | |
| 60 | 8002-135 | SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y | 1 | $0.65 | |
| 61 | 8012-192 | SCREW,CAP-HHNLP 3/8-16X1.0 G5 | 1 | $1.95 | |
| 62 | 0604-582 | ROLLER/SLIDE,FRONT SPRING | 1 | $3.30 | |
| 63 | 0104-894 | SPRING,REAR-RIGHT | 1 | $18.95 | |
| 64 | 8012-220 | SCREW,CAP-HHNLP 3/8-16X.75 G5 Z&Y | 1 | $0.75 | |
| 66 | 0114-245 | WHEEL IDLER,5.25 W-5/8 BORE | 1 | $42.95 |
