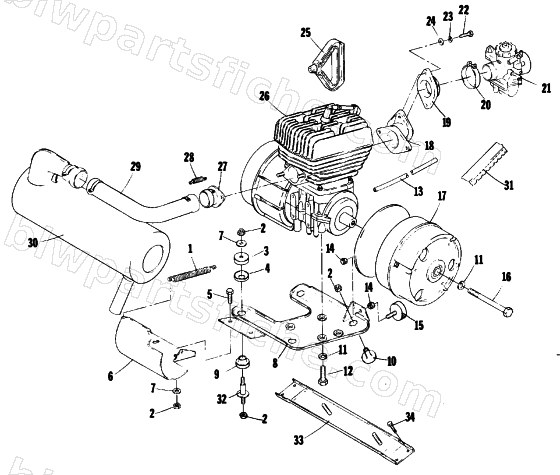

1979 Arctic Cat LYNX SINGLE — ENGINE AND RELATED PARTS
1979 LYNX SINGLE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0112-232 | SPRING,EXTENSION | 1 | $25.95 | |
| 2 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 3 | 0108-227 | MOUNT ENGINE-FEMALE | 1 | $8.95 | |
| 4 | 0123-745 | WASHER,CUP | 1 | $22.01 | |
| 5 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 7 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 9 | 0108-198 | MOUNT,ENGINE-MALE | 1 | $5.95 | |
| 11 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 12 | 8002-404 | SCREW,CAP-HH 1/2-13 X1.25 G5 Z&Y | 1 | $1.95 | |
| 13 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 14 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 16 | 8004-416 | SCREW,CAP-HH 1/2-20X5.0 G5 Z&Y | 1 | $0.68 | |
| 19 | 0109-701 | FLANGE,CARB-28/30MM | 1 | $60.59 | |
| 22 | 8002-132 | SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y | 1 | $0.95 | |
| 23 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 24 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 25 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 28 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 30 | 0112-371 | MUFFLER,ASSY | 1 | $274.95 | |
| 31 | 0227-019 | BELT, DRIVE | 1 | $62.95 | |
| 34 | 8012-039 | SCREW,CAP-HHNLP 1/4-20X.625 G5 Z&Y | 1 | $0.40 |
