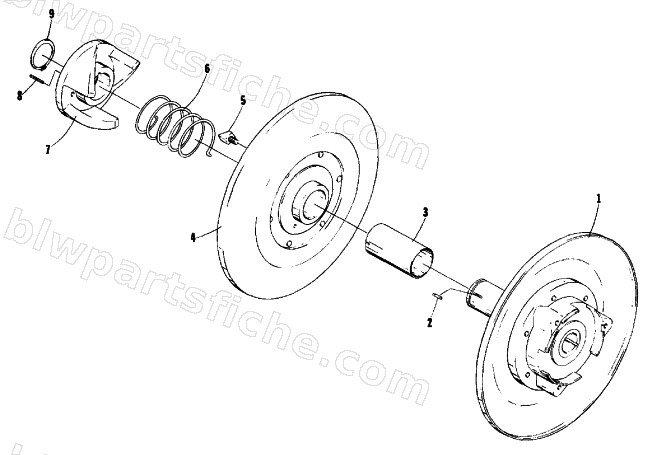

1978 Arctic Cat PANTHER 5000 — DRIVEN CLUTCH
1978 PANTHER 5000
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0226-019 | CLUTCH DRIVEN-W/O BRK DISC | 1 | $315.95 | |
| 4 | 0148-093 | SHEAVE ASSY MOVEABLE | 1 | $193.95 | |
| 5 | 0148-148 | SLIDE,SHOE RAMP | 1 | $16.49 | |
| 8 | 0123-594 | RING RETAINING | 1 | $12.95 | |
| 9 | 8070-164 | PIN,SPRING-3/32 X 1 SLOTTED P&O | 1 | $0.25 |
