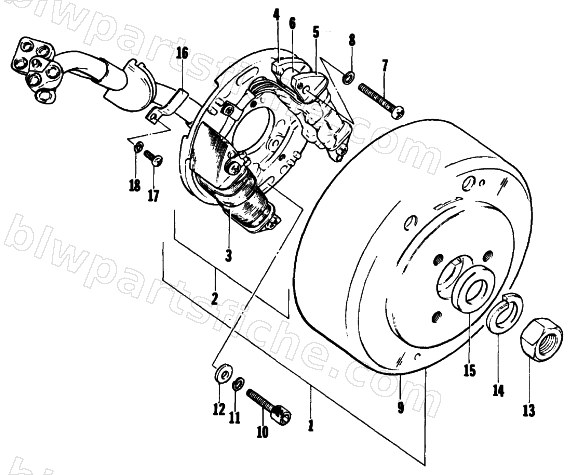

1978 Arctic Cat PANTERA F/A — MAGNETO
1978 PANTERA F/A
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3002-196 | MAGNETO ASSY | 1 | $1,022.95 | |
| 2 | 3002-197 | STATOR ASSY | 1 | $513.95 | |
| 3 | 3003-251 | COIL,LIGHTING | 1 | $147.95 | |
| 6 | 3002-201 | SPACER,M5 | 1 | $1.95 | |
| 7 | 3007-843 | SCREW,M5X35 | 1 | $2.75 | |
| 8 | 3007-628 | WASHER, LOCK-5MM | 1 | $3.30 | |
| 9 | 3002-202 | ROTOR ASSY | 1 | $466.95 | |
| 10 | 3002-281 | BOLT,HEX SOC M5-.8X22 | 1 | $2.39 | |
| 12 | 3002-282 | WASHER,FLAT 5M.2X12X1.6 | 1 | $1.95 | |
| 13 | 3007-556 | NUT | 1 | $3.95 | |
| 14 | 3007-427 | LOCK WASHER | 1 | $4.40 | |
| 15 | 3005-175 | WASHER, 14.5X28X5 | 1 | $3.16 | |
| 18 | 3007-847 | WASHER,LOCK-4MM | 1 | $3.16 |
