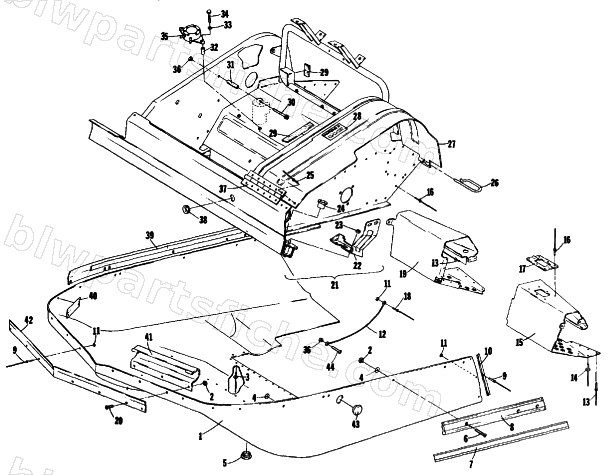

1978 Arctic Cat PANTERA F/A — BELLY PAN AND FRONT FRAME
1978 PANTERA F/A
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 3 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 4 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 6 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 8 | 0116-978 | BUMPER,FRONT | 1 | $275.95 | |
| 9 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 11 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 13 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 14 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 16 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 20 | 8008-610 | R/B 8007-610 | 1 | $0.25 | |
| 23 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 24 | 0105-239 | BUSHING FLANGED | 1 | $25.95 | |
| 25 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 26 | 0123-670 | PIN,HITCH | 1 | $42.95 | |
| 32 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 33 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 34 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 35 | 0109-638 | FUEL PUMP(DF52-21-D) | 1 | $152.95 | |
| 36 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 43 | 0116-604 | PLUG BELLY PAN 1-1/2 | 1 | $1.45 | |
| 44 | 8007-430 | SCREW,MACH-CRTH 10-24X.75 G2 BE | 1 | $0.95 |
