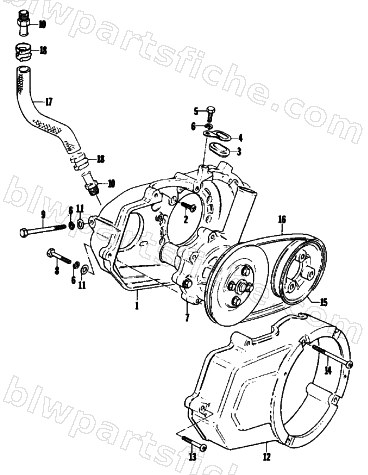

1978 Arctic Cat EL TIGRE' 6000 L/C — WATER PUMP
1978 EL TIGRE' 6000 L/C
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3002-595 | CASE,MAGNETO | 1 | $360.95 | |
| 2 | 3003-395 | SCREW,6X20 C/S | 1 | $3.44 | |
| 3 | 3002-314 | CAP,M30 | 1 | $3.95 | |
| 6 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 8 | 3005-954 | BOLT, M6 X 35 | 1 | $0.68 | |
| 9 | 3002-963 | BOLT,HEX M6X70 | 1 | $3.95 | |
| 10 | 3002-218 | UNION OUTLET BY-PASS,M16 | 1 | $22.01 | |
| 11 | 3003-023 | WASHER, FLAT,5MM | 1 | $1.95 | |
| 12 | 3002-603 | COVER,WATER PUMP | 1 | $174.95 | |
| 14 | 3003-025 | SCREW, PAN HEAD-M6X60 | 1 | $2.95 | |
| 17 | 3007-022 | KIT,BYPASS HOSE | 1 | $34.95 | |
| 18 | 3008-488 | CLIP (ID:17.8) | 1 | $6.34 |
