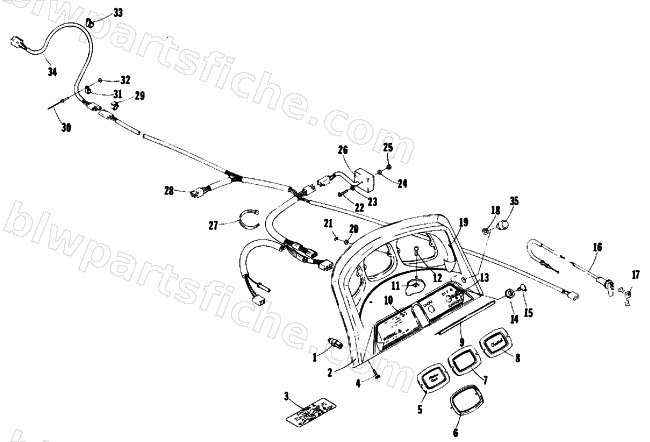

1978 Arctic Cat CHEETAH — CONSOLE AND WIRING
1978 CHEETAH
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0109-822 | SWITCH,IGNITION | 1 | $68.95 | |
| 2 | 0106-886 | CONSOLE | 1 | $123.95 | |
| 11 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 12 | 8008-610 | R/B 8007-610 | 1 | $0.25 | |
| 14 | 0609-111 | NUT,RETAINING-5/8-32UN2B BLK PLASTIC | 1 | $6.47 | |
| 15 | 0116-065 | KEY,IGNITION | 1 | $8.21 | |
| 16 | 0109-722 | CABLE,CHOKE-23'' | 1 | $86.95 | |
| 17 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 18 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 | |
| 20 | 0123-254 | WASHER,FLAT 11/64X1/2 RUBB | 1 | $0.12 | |
| 21 | 0123-490 | NUT,SPEED 5/32 | 1 | $1.50 | |
| 22 | 8007-584 | SCREW,MACH-CRTH 1/4-20X1.25 G2 Z&Y | 1 | $2.19 | |
| 23 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 24 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 25 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 26 | 0232-014 | REGULATOR,VOLTAGE | 1 | $75.95 | |
| 27 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 29 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 31 | 0123-397 | CLAMP CABLE NYLON 5/16 | 1 | $0.75 | |
| 32 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 35 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 |
