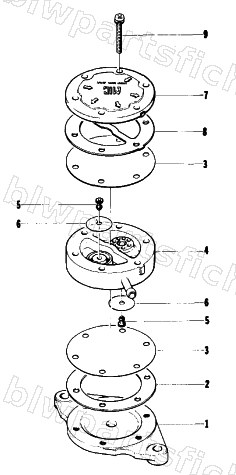

1977 Arctic Cat PANTERA F/C — FUEL PUMP
1977 PANTERA F/C
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0115-631 | FUEL PUMP(DF52-89) | 1 | $158.95 | |
| 2 | 6506-249 | PACKING | 1 | $6.89 | |
| 5 | 6505-139 | GROMMET,FUEL PUMP | 1 | $6.34 | |
| 6 | 6505-062 | VALVE | 1 | $6.95 | |
| 8 | 6506-248 | PACKING | 1 | $6.89 |
