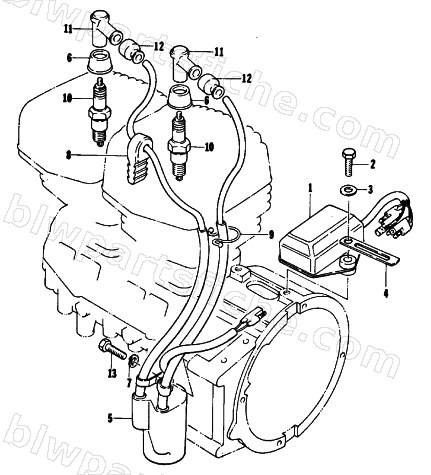

1977 Arctic Cat JAG — ELECTRICAL

1977 JAG

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3002-117	CDI UNIT IGN.	1	$927.95
3	3003-030	WASHER, FLAT	1	$2.75
4	3002-278	CLAMP,M6	1	$3.95
7	3004-447	WASHER, LOCK 6MM	1	$3.16
10	0217-034	SPARK PLUG BR8ES (SCREW CAP)	1	$4.54
11	3003-175	CAP,SPARK PLUG LB05EZ	1	$12.35
13	3007-380	BOLT	1	$3.16
