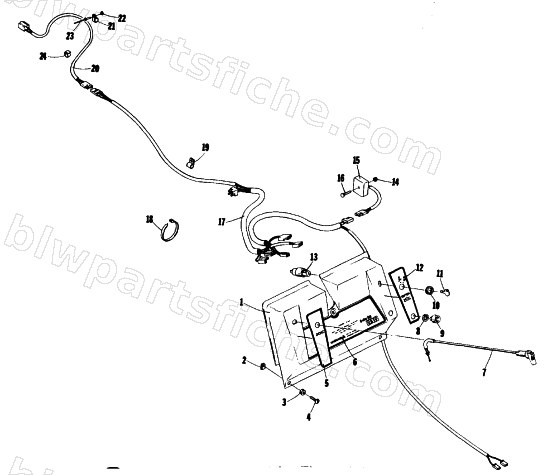

1977 Arctic Cat JAG — CONSOLE AND WIRING
1977 JAG
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 4 | 8008-610 | R/B 8007-610 | 1 | $0.25 | |
| 7 | 0687-003 | CABLE,CHOKE-SINGLE | 1 | $68.95 | |
| 8 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 | |
| 9 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 10 | 0609-111 | NUT,RETAINING-5/8-32UN2B BLK PLASTIC | 1 | $6.47 | |
| 11 | 0116-065 | KEY,IGNITION | 1 | $8.21 | |
| 13 | 0109-822 | SWITCH,IGNITION | 1 | $68.95 | |
| 14 | 0123-597 | NUT,LOCK-W/WASHER 1/4-20 | 1 | $0.36 | |
| 15 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 18 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 21 | 0123-397 | CLAMP CABLE NYLON 5/16 | 1 | $0.75 | |
| 22 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 24 | 0123-394 | CLIP CABLE | 1 | $1.37 |
