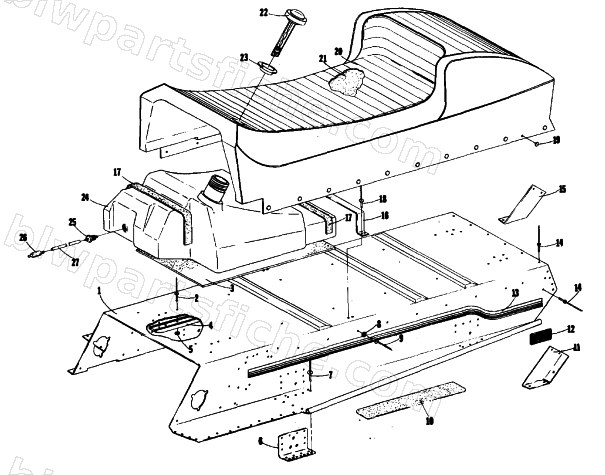

1977 Arctic Cat EL TIGRE 4000 — TUNNEL, GAS TANK AND SEAT
1977 EL TIGRE 4000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 5 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 7 | 8060-482 | RIVET,BLIND-DH SS52 ZINC | 1 | $0.14 | |
| 8 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 14 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 18 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 19 | 0116-378 | SNAP,ASSY BLACK-CUSHION | 1 | $1.23 | |
| 23 | 0117-054 | SEAL,GAS TANK-SPILL | 1 | $32.95 | |
| 25 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 26 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 27 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 |
