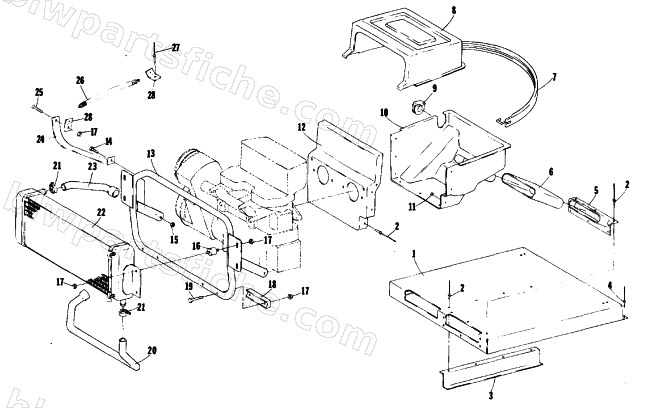

1977 Arctic Cat CROSS COUNTRY CAT — COOLING SYSTEM
1977 CROSS COUNTRY CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 4 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 11 | 8050-122 | WASHER,FLAT- #8 X .438 X .049 Z&Y | 1 | $3.85 | |
| 14 | 8002-130 | SCREW, CAP-HH 5/16-18 X .75 G5 Z&Y | 1 | $0.68 | |
| 15 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 16 | 0115-018 | MOUNT,RADIATOR | 1 | $18.95 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 19 | 8002-047 | SCREW,CAP-HH 1/4-20 X2.00 G5 Z&Y | 1 | $0.95 | |
| 25 | 0123-190 | SCREW,MACH FT HD 1/4-20X1-3/8 | 1 | $0.45 | |
| 26 | 0112-232 | SPRING,EXTENSION | 1 | $25.95 |
