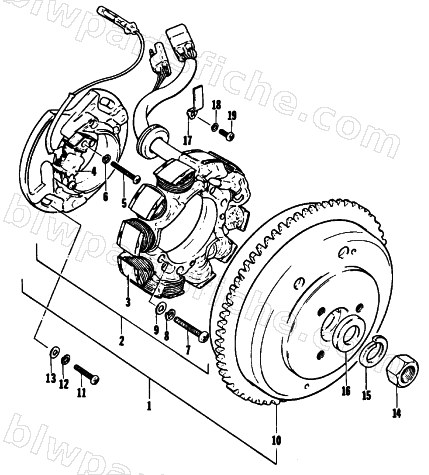

1977 Arctic Cat CHEETAH — MAGNETO
1977 CHEETAH
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3002-724 | STATOR ASSY | 1 | $1,147.95 | |
| 4 | 3002-576 | SENSOR,ASSY IGN TIMING | 1 | $174.95 | |
| 5 | 3004-535 | SCREW, 4X20 | 1 | $1.95 | |
| 6 | 3007-847 | WASHER,LOCK-4MM | 1 | $3.16 | |
| 8 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 9 | 3003-023 | WASHER, FLAT,5MM | 1 | $1.95 | |
| 11 | 3002-279 | SCREW,M5-8X20 | 1 | $2.95 | |
| 12 | 3007-628 | WASHER, LOCK-5MM | 1 | $3.30 | |
| 13 | 3000-260 | WASHER,5MM | 1 | $0.26 | |
| 14 | 3007-556 | NUT | 1 | $3.95 | |
| 15 | 3007-427 | LOCK WASHER | 1 | $4.40 | |
| 16 | 3005-175 | WASHER, 14.5X28X5 | 1 | $3.16 |
