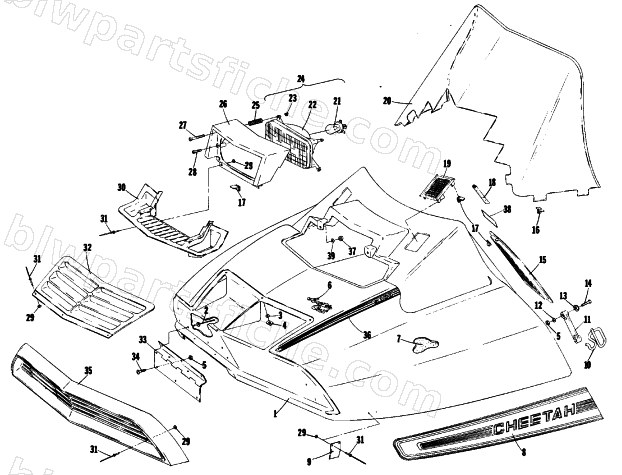

1977 Arctic Cat CHEETAH — HOOD
1977 CHEETAH
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 0123-254 | WASHER,FLAT 11/64X1/2 RUBB | 1 | $0.12 | |
| 4 | 0123-490 | NUT,SPEED 5/32 | 1 | $1.50 | |
| 5 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 7 | 0717-078 | FOAM,HOOD-CONVOLUTED 27 X 3'X.75 | 1 | $24.77 | |
| 10 | 0116-376 | LATCH,HOOD | 1 | $31.95 | |
| 11 | 0116-827 | STRAP,LATCH-HOOD | 1 | $14.95 | |
| 12 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 13 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 16 | 0123-758 | CLIP,WINDSHIELD | 1 | $2.95 | |
| 17 | 0123-596 | CLIP,PUSH | 1 | $1.95 | |
| 21 | 0109-735 | BULB,HEADLIGHT 12V60/6 | 1 | $24.95 | |
| 23 | 0123-615 | NUT,ADJUSTMENT | 1 | $4.54 | |
| 24 | 0109-734 | HEADLIGHT,ASSY-STANDARD | 1 | $79.95 | |
| 25 | 0123-614 | SPRING,ADJUSTMENT | 1 | $1.92 | |
| 29 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 34 | 8008-610 | R/B 8007-610 | 1 | $0.25 | |
| 37 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 39 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 |
