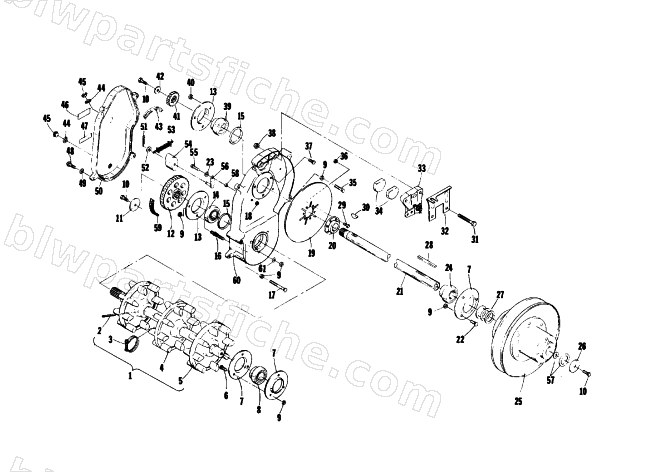

DRIVE TRAIN
1976 PANTERA
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8070-383 | PIN,SPRING-1/4 X 2-1/4 SLOTTED P&O | 1 | $6.75 | |
| 5 | 0102-207 | R/B 0102-249 | 1 | $33.29 | |
| 6 | 8011-132 | BOLT,CRG 5/16-18X1.0 GR1 Z&Y | 1 | $1.78 | |
| 7 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 8 | 1602-375 | BEARING,1.00 W/COLLAR | 1 | $72.95 | |
| 9 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 10 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 11 | 0123-020 | CARRIAGE SPRING WASHER | 1 | $13.73 | |
| 12 | 0107-325 | SPROCKET,35T-3/8 X.520 1.0 | 1 | $135.95 | |
| 14 | 1702-179 | KIT,REPLACEMENT BEARING-1" | 1 | $79.95 | |
| 15 | 0107-003 | SEAL,O RING .093 | 1 | $1.37 | |
| 16 | 0107-233 | STUD,DROPCASE | 1 | $33.95 | |
| 17 | 8011-140 | BOLT,CRG 5/16-18X2.75 GR1 Z&Y | 1 | $0.65 | |
| 18 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 19 | 0109-867 | DISC,BRAKE | 1 | $125.95 | |
| 20 | 0602-040 | HUB,BRAKE | 1 | $84.95 | |
| 21 | 0602-223 | SHAFT,DRIVEN | 1 | $208.95 | |
| 22 | 8011-130 | BOLT,CRG 5/16-18X.75 GR1 Z&Y | 1 | $1.09 | |
| 23 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 24 | 1602-290 | BEARING,1 W/LOCK(LARGE RACE) | 1 | $81.95 | |
| 27 | 0123-263 | WASHER,FLAT 1IDX1-1/2X14GA | 1 | $0.45 | |
| 28 | 0101-076 | KEY 3/16 X 1/4 X 3 | 1 | $2.75 | |
| 29 | 8006-399 | SCREW, CAP-HSH 10-32X.625 Z&Y | 1 | $0.25 | |
| 30 | 0602-598 | KEY,WOODRUFF-HARDENED | 1 | $17.87 | |
| 31 | 8002-228 | SCREW,CAP-HH 3/8-16 X2.25 G5 Z&Y | 1 | $3.44 | |
| 34 | 0109-471 | PUCK,BRAKE | 1 | $25.95 | |
| 35 | 8011-137 | BOLT,CRG 5/16-18X2.0 GR1 Z&Y | 1 | $0.25 | |
| 36 | 8040-276 | NUT,HEX LOCK-NYL 10-32 Z&Y | 1 | $0.15 | |
| 37 | 0123-523 | BOLT,RIB NECK-RDH 5/16-18X.625 Z&Y | 1 | $3.02 | |
| 38 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 39 | 1702-180 | KIT,REPLACEMENT BEARING-7/8" | 1 | $63.95 | |
| 40 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 41 | 0107-508 | SPROCKET-24T | 1 | $86.95 | |
| 43 | 0107-214 | SEAL,DROPCASE COVER | 1 | $21.95 | |
| 44 | 0123-641 | WASHER,FIBER-1/2X13/16X.030 | 1 | $4.95 | |
| 45 | 0623-293 | PLUG, DRAIN | 1 | $2.61 | |
| 48 | 8002-132 | SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y | 1 | $0.95 | |
| 49 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 51 | 0123-082 | PIN, COTTER - 1/16 X 5/8 | 1 | $0.15 | |
| 52 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 53 | 0707-026 | SPRING, TIGHTENER | 1 | $27.95 | |
| 54 | 0107-411 | PAD, TIGHTENER | 1 | $29.95 | |
| 55 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 56 | 0107-226 | PIN & LINK ASS'Y,TIGHTENER | 1 | $18.95 | |
| 57 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 57 | 0123-578 | WASHER,FLAT 1IDX1.5X.030 THK | 1 | $3.95 | |
| 58 | 0107-234 | BUSHING,TIGHTENER ARM | 1 | $16.95 | |
| 59 | 0107-216 | CHAIN,70 PITCH-SILENT | 1 | $101.95 | |
| 61 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 |
