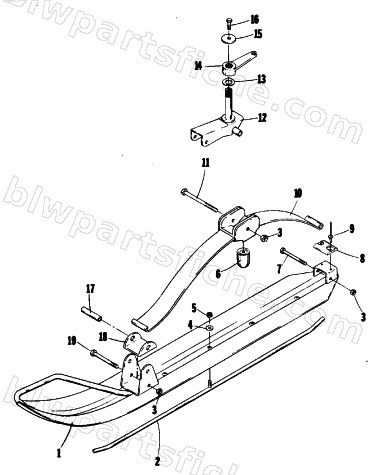

1976 Arctic Cat JAG 340 — SKI
1976 JAG 340
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-987 | SKI-WELDT-STF-0703-068 | 1 | $252.95 | |
| 2 | 1703-529 | SKAG-PTD BLK | 1 | $19.25 | |
| 3 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 4 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 5 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 7 | 8002-230 | SCREW,CAP-HH 3/8-16 X2.75 G5 Z&Y | 1 | $1.23 | |
| 9 | 8061-486 | RIVET,BLIND-LF SS54 ZINC | 1 | $1.09 | |
| 12 | 0105-180 | SPINDLE WELDED | 1 | $66.95 | |
| 16 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 18 | 0103-101 | SADDLE,SPRING SLIDE | 1 | $16.95 | |
| 19 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 |
