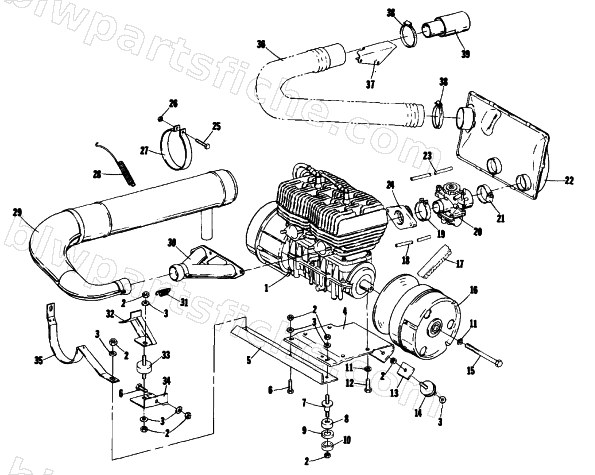

1976 Arctic Cat EL TIGRE 500 — ENGINE AND RELATED PARTS
1976 EL TIGRE 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 3 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 6 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 8 | 0108-198 | MOUNT,ENGINE-MALE | 1 | $5.95 | |
| 9 | 0123-745 | WASHER,CUP | 1 | $22.01 | |
| 10 | 0108-199 | MOUNT,ENGINE-FEMALE | 1 | $12.35 | |
| 11 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 12 | 8002-404 | SCREW,CAP-HH 1/2-13 X1.25 G5 Z&Y | 1 | $1.95 | |
| 15 | 8004-416 | SCREW,CAP-HH 1/2-20X5.0 G5 Z&Y | 1 | $0.68 | |
| 17 | 0227-020 | BELT,DRIVE | 1 | $61.95 | |
| 18 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 19 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 20 | 0170-083 | CARBURETOR VM32-104 | 1 | $132.95 | |
| 23 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 24 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 | |
| 26 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 28 | 0112-243 | SPRING,RETAINING -MUFFLER | 1 | $13.95 | |
| 31 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 32 | 0112-210 | BRKT,MUFFLER | 1 | $62.95 | |
| 38 | 0214-032 | CLAMP,HOSE #44 | 1 | $7.95 |
