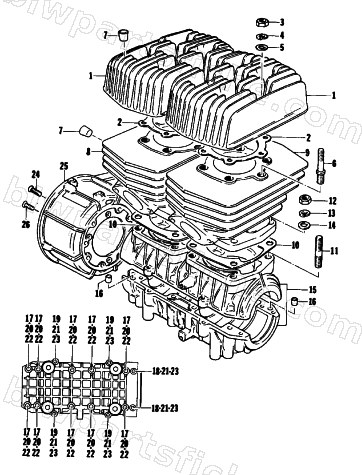

1976 Arctic Cat EL TIGRE 500 — CRANKCASE AND CYLINDER
1976 EL TIGRE 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3004-131 | GASKET, HEAD-500 F/C | 1 | $43.95 | |
| 3 | 3007-416 | NUT | 1 | $2.75 | |
| 4 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 5 | 3423-204 | WASHER | 1 | $1.95 | |
| 6 | 3002-020 | STUD BOLT M8 | 1 | $4.88 | |
| 7 | 3002-055 | PAD CYLINDER HEAD | 1 | $4.95 | |
| 8 | 3002-284 | CYLINDER RH-5000 | 1 | $745.95 | |
| 9 | 3002-286 | CYLINDER LH 5000 | 1 | $836.95 | |
| 12 | 3008-209 | NUT,10MM | 1 | $3.16 | |
| 13 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 14 | 3007-410 | WASHER | 1 | $2.75 | |
| 16 | 3002-012 | PIN, DOWEL 9 X 12 | 1 | $2.88 | |
| 18 | 3002-963 | BOLT,HEX M6X70 | 1 | $3.95 | |
| 21 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 24 | 3007-566 | SCREW | 1 | $1.95 | |
| 26 | 3003-395 | SCREW,6X20 C/S | 1 | $3.44 |
