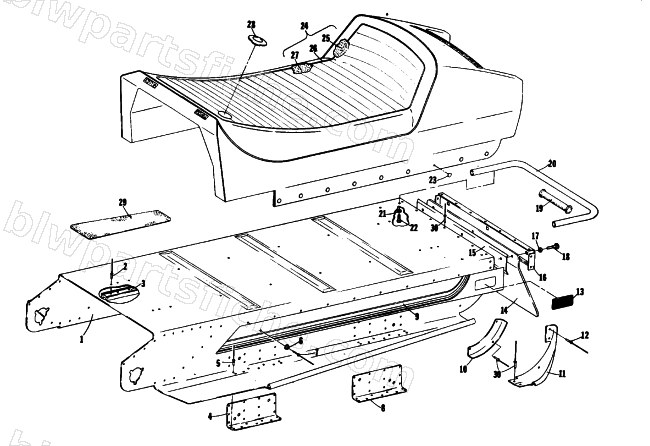

1976 Arctic Cat CROSS COUNTRY CAT — BODY AND SEAT
1976 CROSS COUNTRY CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 5 | 8060-482 | RIVET,BLIND-DH SS52 ZINC | 1 | $0.14 | |
| 6 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 12 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 8011-070 | BOLT,CRG 1/4-20X.75 GR1 BLK | 1 | $0.26 | |
| 21 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 22 | 8012-040 | SCREW,CAP-HHNLP 1/4-20X.75 G5 Z&Y | 1 | $5.65 | |
| 23 | 0116-378 | SNAP,ASSY BLACK-CUSHION | 1 | $1.23 | |
| 28 | 0117-054 | SEAL,GAS TANK-SPILL | 1 | $32.95 | |
| 30 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 |
