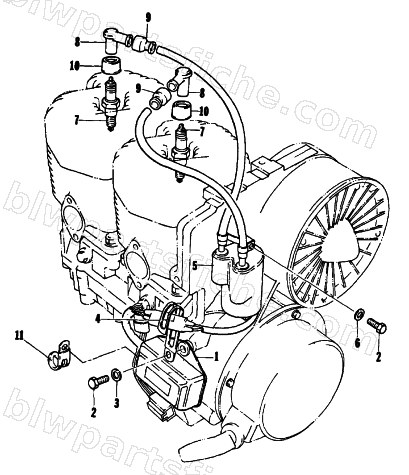

1976 Arctic Cat CHEETAH 440 — ELECTRICAL
1976 CHEETAH 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3002-117 | CDI UNIT IGN. | 1 | $927.95 | |
| 2 | 3007-380 | BOLT | 1 | $3.16 | |
| 3 | 3003-030 | WASHER, FLAT | 1 | $2.75 | |
| 4 | 3002-278 | CLAMP,M6 | 1 | $3.95 | |
| 5 | 3003-712 | COIL,IGNITION | 1 | $391.95 | |
| 6 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 7 | 0217-034 | SPARK PLUG BR8ES (SCREW CAP) | 1 | $4.54 | |
| 8 | 3003-175 | CAP,SPARK PLUG LB05EZ | 1 | $12.35 |
