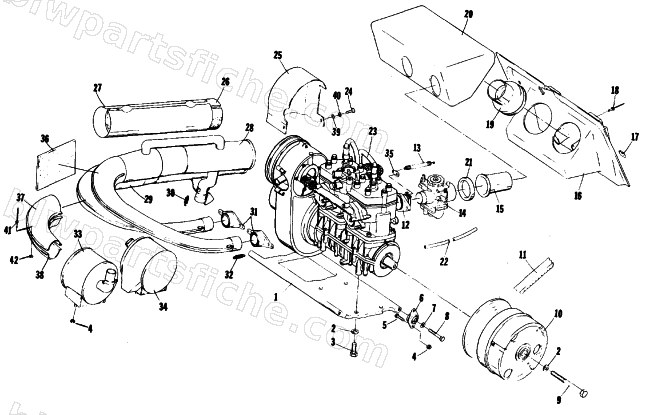

1976 Arctic Cat ARCTIC Z 440 — ENGINE AND RELATED PARTS
1976 ARCTIC Z 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 3 | 8002-404 | SCREW,CAP-HH 1/2-13 X1.25 G5 Z&Y | 1 | $1.95 | |
| 5 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 7 | 8051-272 | WASHER,SPR LOCK-3/8 .377X.680X.094 Z&Y | 1 | $0.12 | |
| 8 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 9 | 8004-416 | SCREW,CAP-HH 1/2-20X5.0 G5 Z&Y | 1 | $0.68 | |
| 11 | 0227-014 | BELT,DRIVE | 1 | $61.95 | |
| 12 | 0670-197 | FLANGE,CARB-38MM W/CLAMP | 1 | $66.95 | |
| 13 | 0109-839 | SPRING,EXTENSION-24 | 1 | $13.73 | |
| 22 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 30 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 32 | 0112-426 | SPRING,EXTENSION | 1 | $20.95 | |
| 35 | 9791-307 | CLIP SPRING | 1 | $1.95 | |
| 39 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 40 | 8051-213 | R/B 8051-212 | 1 | $0.35 | |
| 41 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 42 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 |
