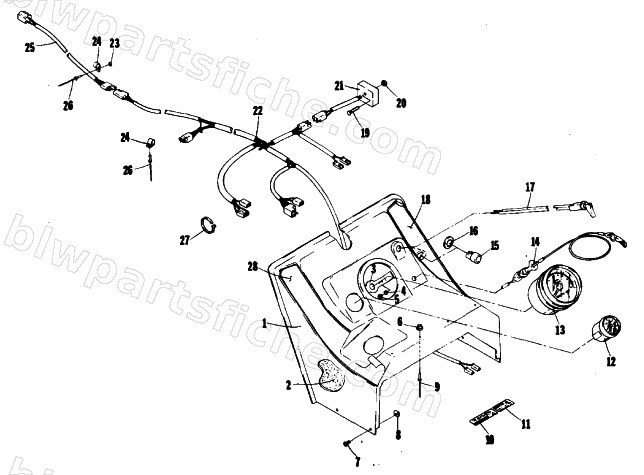

1976 Arctic Cat ARCTIC Z 440 — CONSOLE AND WIRING
1976 ARCTIC Z 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0717-078 | FOAM,HOOD-CONVOLUTED 27 X 3'X.75 | 1 | $24.77 | |
| 3 | 0120-281 | BRACKET,MTG-TACHOMETER | 1 | $13.73 | |
| 4 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 6 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 7 | 8008-607 | SCREW,MACH-SLTH 1/4-20X.50 G2 BE | 1 | $0.15 | |
| 8 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 9 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 15 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 16 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 | |
| 18 | 0211-546 | DECAL,CONSOLE RIGHT | 1 | $49.95 | |
| 20 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 21 | 0232-014 | REGULATOR,VOLTAGE | 1 | $75.95 | |
| 23 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 24 | 0123-397 | CLAMP CABLE NYLON 5/16 | 1 | $0.75 | |
| 27 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
