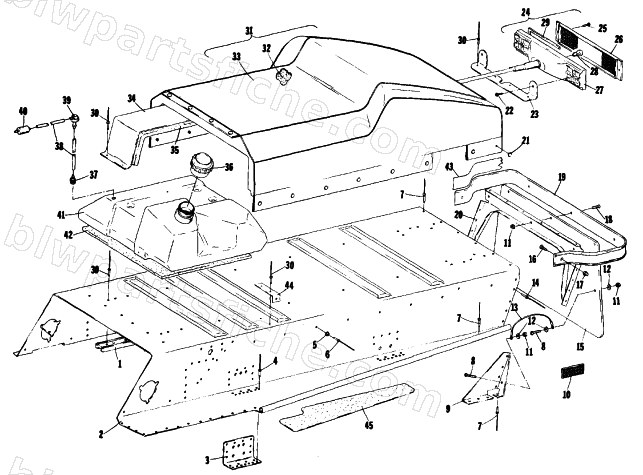

1976 Arctic Cat ARCTIC Z 440 — BODY AND RELATED PARTS
1976 ARCTIC Z 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 4 | 8060-482 | RIVET,BLIND-DH SS52 ZINC | 1 | $0.14 | |
| 5 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 7 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 8 | 8008-610 | R/B 8007-610 | 1 | $0.25 | |
| 11 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 12 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 14 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 16 | 8008-577 | SCREW,MACH-SLTH 1/4-20X.50 G2 Z&Y | 1 | $0.45 | |
| 21 | 0116-378 | SNAP,ASSY BLACK-CUSHION | 1 | $1.23 | |
| 22 | 0123-661 | SCREW,MTL HEX HD 8X5/8 AB-SLOT | 1 | $0.15 | |
| 25 | 0123-465 | SCREW,MTL PN HD 8X5/8 SELF TAP | 1 | $0.35 | |
| 28 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 29 | 0106-638 | GASKET MAT'L-5FT LENGTH | 1 | $5.59 | |
| 30 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 36 | 0109-628 | CAP,GAS W/O GAUGE | 1 | $32.95 | |
| 38 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 39 | 0109-284 | ELBOW,GAS TANK | 1 | $27.95 | |
| 40 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 43 | 0106-977 | STRIP BUMPER-50 FT | 1 | $360.95 |
