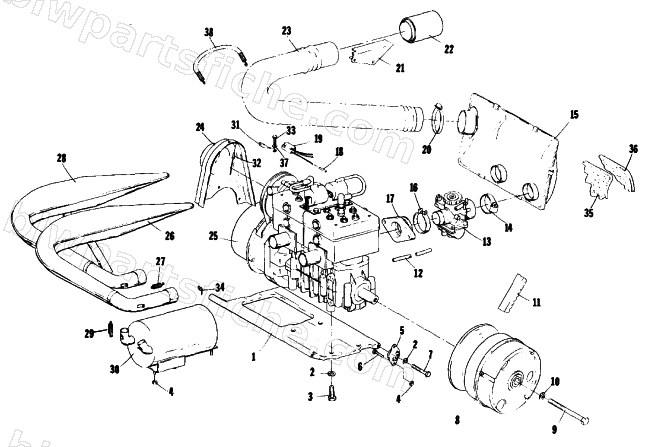

1976 Arctic Cat ARCTIC Z 250 — ENGINE AND RELATED PARTS
1976 ARCTIC Z 250
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8051-272 | WASHER,SPR LOCK-3/8 .377X.680X.094 Z&Y | 1 | $0.12 | |
| 3 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 4 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 6 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 7 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 9 | 8004-416 | SCREW,CAP-HH 1/2-20X5.0 G5 Z&Y | 1 | $0.68 | |
| 10 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 11 | 0227-014 | BELT,DRIVE | 1 | $61.95 | |
| 12 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 16 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 17 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 | |
| 20 | 0214-032 | CLAMP,HOSE #44 | 1 | $7.95 | |
| 27 | 0112-426 | SPRING,EXTENSION | 1 | $20.95 | |
| 29 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 33 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 37 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 38 | 0109-839 | SPRING,EXTENSION-24 | 1 | $13.73 |
