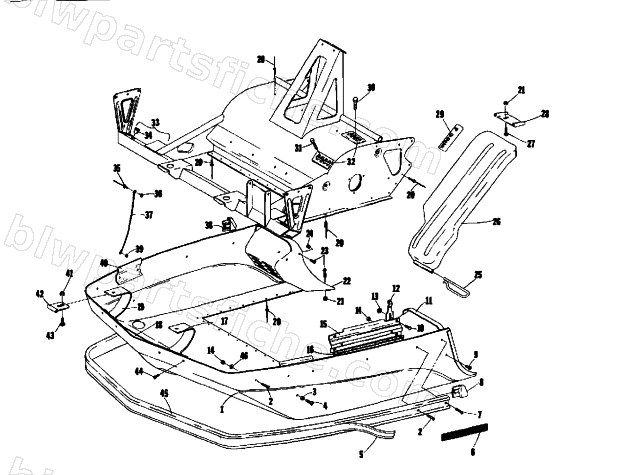

1975 Arctic Cat PANTERA 340 — BELLY PAN AND FRONT FRAME
1975 PANTERA 340
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 14 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 20 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 21 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 23 | 8008-579 | SCREW,MACH-SLTH 1/4-20X5/8 Z&Y | 1 | $0.95 | |
| 25 | 0123-670 | PIN,HITCH | 1 | $42.95 | |
| 30 | 8012-132 | SCREW,CAP-HHNLP 5/16-18X1.0 G5 Z&Y | 1 | $0.65 | |
| 31 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 34 | 0105-239 | BUSHING FLANGED | 1 | $25.95 | |
| 36 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 37 | 0109-135 | HOOD CABLE - 15" | 1 | $7.95 | |
| 39 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 44 | 8008-610 | R/B 8007-610 | 1 | $0.25 | |
| 46 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 |
