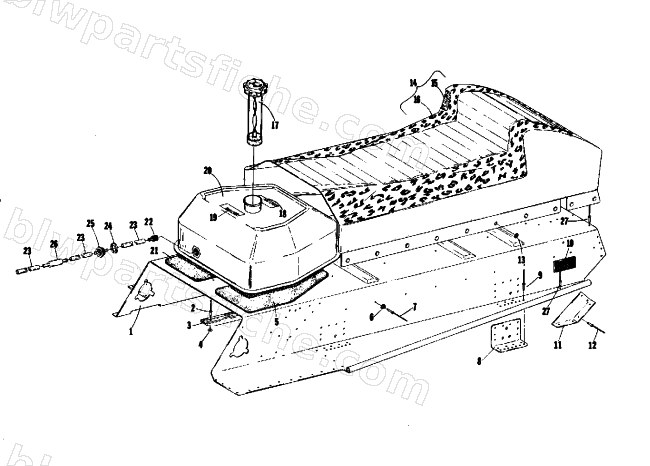

1975 Arctic Cat JAG 340 — TUNNEL, GAS TANK AND SEAT
1975 JAG 340
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 4 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 6 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 9 | 8060-482 | RIVET,BLIND-DH SS52 ZINC | 1 | $0.14 | |
| 12 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 13 | 0116-378 | SNAP,ASSY BLACK-CUSHION | 1 | $1.23 | |
| 17 | 0109-362 | CAP & GAUGE ASS'Y - GAS TANK | 1 | $79.95 | |
| 23 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 26 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 27 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 |
