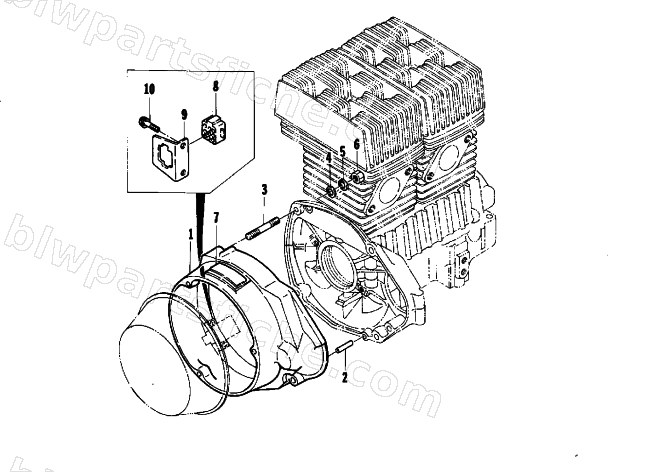

1975 Arctic Cat JAG 340 — MAGNETO COVER
1975 JAG 340
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3000-268 | PIN,DOWEL | 1 | $2.95 | |
| 3 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 4 | 3423-204 | WASHER | 1 | $1.95 | |
| 6 | 3007-416 | NUT | 1 | $2.75 | |
| 8 | 0109-527 | HOUSING SOCKET 1-4 | 1 | $4.09 |
