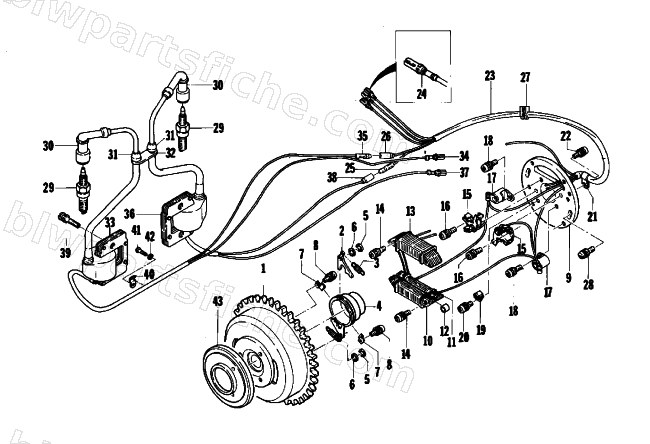

1975 Arctic Cat JAG 340 — MAGNETO
1975 JAG 340
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 11 | 3001-571 | COIL EXCITING 2 | 1 | $165.95 | |
| 15 | 3000-947 | BREAKER,CONTACT | 1 | $31.95 | |
| 16 | 3000-942 | SCREW,4 X 10 | 1 | $0.15 | |
| 24 | 0109-526 | SOCKET 60619-1 | 1 | $0.85 | |
| 29 | 0217-034 | SPARK PLUG BR8ES (SCREW CAP) | 1 | $4.54 | |
| 30 | 3001-469 | CAP,PLUG | 1 | $20.95 | |
| 42 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 |
