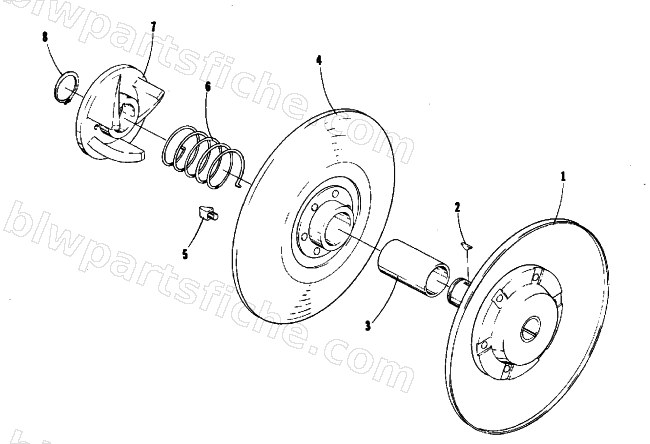

1975 Arctic Cat JAG 340 — DRIVEN CLUTCH
1975 JAG 340
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0148-107 | SHEAVE,ASSY-STATIONARY | 1 | $90.95 | |
| 4 | 0148-093 | SHEAVE ASSY MOVEABLE | 1 | $193.95 | |
| 5 | 0148-148 | SLIDE,SHOE RAMP | 1 | $16.49 | |
| 8 | 0123-594 | RING RETAINING | 1 | $12.95 |
