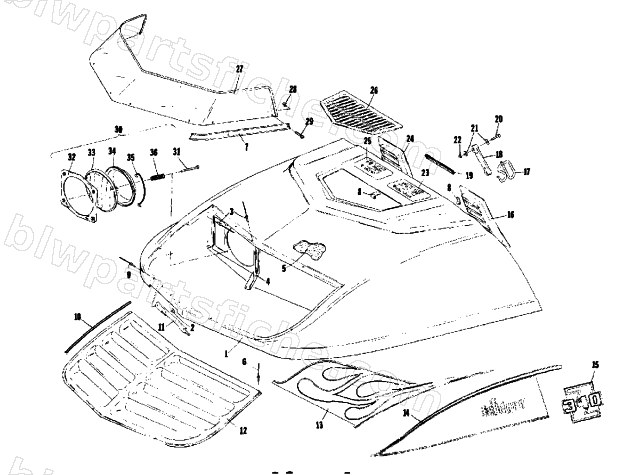

1975 Arctic Cat EL TIGRE' Z 250 — HOOD
1975 EL TIGRE' Z 250
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 3 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 5 | 0717-078 | FOAM,HOOD-CONVOLUTED 27 X 3'X.75 | 1 | $24.77 | |
| 8 | 0123-596 | CLIP,PUSH | 1 | $1.95 | |
| 9 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 17 | 0116-376 | LATCH,HOOD | 1 | $31.95 | |
| 18 | 0116-827 | STRAP,LATCH-HOOD | 1 | $14.95 | |
| 21 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 22 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 28 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 29 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 31 | 0123-733 | SCREW,MACH HEADLIGHT 4900585 | 1 | $1.19 | |
| 36 | 0109-674 | SPRING,COMPRESSION 4900593 | 1 | $0.45 |
