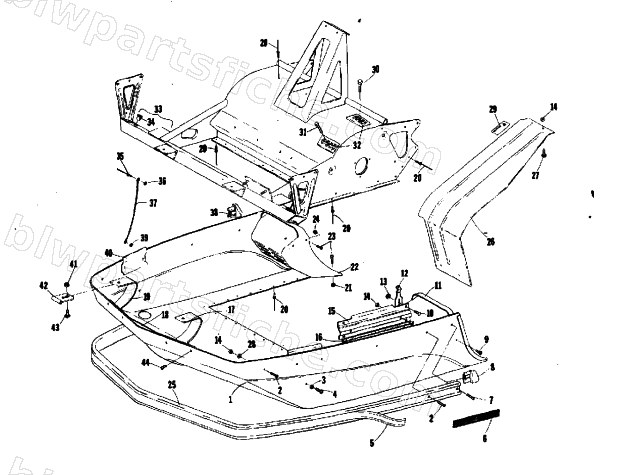

1975 Arctic Cat CHEETAH (Wankel) — BELLY PAN AND FRONT FRAME
1975 CHEETAH (Wankel)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 4 | 8007-670 | SCREW,MACH-CRTH 5/16-18X.75 G2 Z&Y | 1 | $0.95 | |
| 5 | 0106-977 | STRIP BUMPER-50 FT | 1 | $360.95 | |
| 14 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 0687-003 | CABLE,CHOKE-SINGLE | 1 | $68.95 | |
| 16 | 0109-449 | SWITCH,ROCKER-ON/OFF | 1 | $74.95 | |
| 20 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 21 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 23 | 8008-579 | SCREW,MACH-SLTH 1/4-20X5/8 Z&Y | 1 | $0.95 | |
| 24 | 0609-278 | SWITCH, IGN.-E.S.-N.O. | 1 | $71.95 | |
| 25 | 8007-584 | SCREW,MACH-CRTH 1/4-20X1.25 G2 Z&Y | 1 | $2.19 | |
| 26 | 0232-014 | REGULATOR,VOLTAGE | 1 | $75.95 | |
| 27 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 28 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 29 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 30 | 8012-132 | SCREW,CAP-HHNLP 5/16-18X1.0 G5 Z&Y | 1 | $0.65 | |
| 31 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 31 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 32 | 0123-269 | CLAMP,CABLE,11/16 INSUL | 1 | $2.75 | |
| 33 | 8008-610 | R/B 8007-610 | 1 | $0.25 | |
| 34 | 0105-239 | BUSHING FLANGED | 1 | $25.95 | |
| 36 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 37 | 0109-135 | HOOD CABLE - 15" | 1 | $7.95 | |
| 39 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 |
