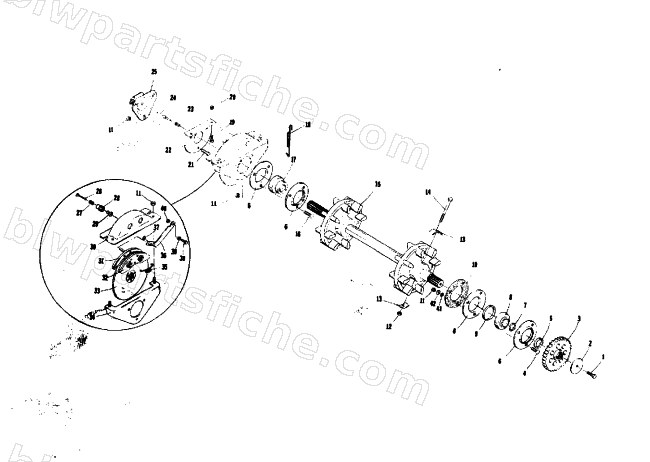

1974 Arctic Cat VIP 440 — TRACK DRIVE AND BRAKE
1974 VIP 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0123-020 | CARRIAGE SPRING WASHER | 1 | $13.73 | |
| 3 | 0107-220 | SPROCKET,39T-3/8 X.520 X 1.00 | 1 | $185.95 | |
| 4 | 8011-130 | BOLT,CRG 5/16-18X.75 GR1 Z&Y | 1 | $1.09 | |
| 6 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 8 | 1602-375 | BEARING,1.00 W/COLLAR | 1 | $72.95 | |
| 9 | 0107-003 | SEAL,O RING .093 | 1 | $1.37 | |
| 11 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 12 | 8040-456 | NUT,HEX LOCK-NYL 5/16-24 Z&Y | 1 | $0.54 | |
| 16 | 8011-132 | BOLT,CRG 5/16-18X1.0 GR1 Z&Y | 1 | $1.78 | |
| 19 | 8001-039 | SCREW,CAP-HH, 1/4-20X.625 G2 Z&Y | 1 | $0.15 | |
| 20 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 23 | 0120-247 | BUSHING,DRIVE-SPEEDOMETER | 1 | $5.65 | |
| 24 | 0120-248 | CABLE,DRIVE ADAPTOR | 1 | $16.49 | |
| 41 | 0123-630 | O-RING 1/4X3/8X1/16 | 1 | $1.95 | |
| 42 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 |
