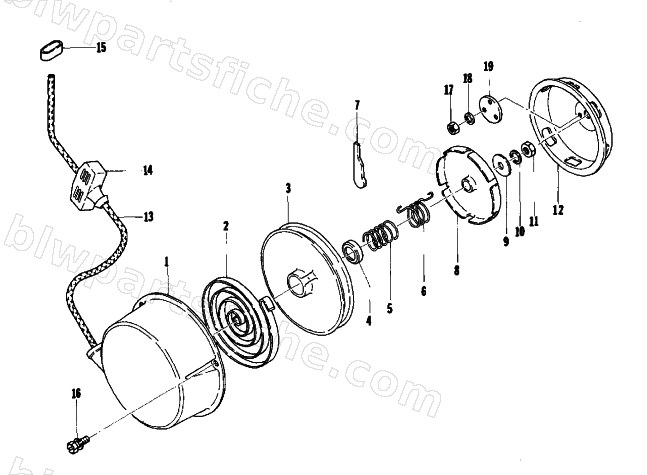

1974 Arctic Cat VIP 440 — RECOIL STARTER
1974 VIP 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3000-038 | SPRING,RECOIL | 1 | $53.95 | |
| 3 | 3000-030 | REEL RECOIL | 1 | $91.95 | |
| 4 | 3000-209 | WASHER | 1 | $0.15 | |
| 5 | 3000-034 | SPRING | 1 | $9.95 | |
| 6 | 3000-036 | SPRING RETURN | 1 | $3.95 | |
| 8 | 3000-037 | RETAINER COVER | 1 | $17.95 | |
| 9 | 3000-031 | WASHER, B | 1 | $0.15 | |
| 10 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 11 | 3007-416 | NUT | 1 | $2.75 | |
| 13 | 3006-889 | ROPE,STARTER-C.T.L(6MM DIA)(203 CM) | 1 | $27.95 | |
| 14 | 3002-611 | GRIP ASSY RECOIL STARTER | 1 | $46.95 | |
| 16 | 3000-755 | BOLT,6M X 16MM | 1 | $0.15 | |
| 18 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 |
