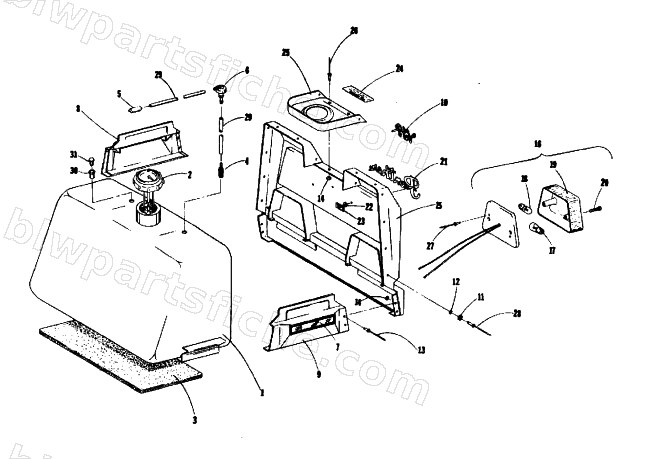

1974 Arctic Cat VIP 440 — FUEL TANK, SHROUD AND TAILLIGHT
1974 VIP 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0109-237 | CAP & GAUGE ASS'Y,GAS TANK | 1 | $67.95 | |
| 5 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 6 | 0109-284 | ELBOW,GAS TANK | 1 | $27.95 | |
| 7 | 0106-345 | REFLECTOR,RED SNAP-IN | 1 | $21.95 | |
| 8 | 0110-558 | SHROUD ASSY SIDE GAS TANK-RIGHT | 1 | $29.95 | |
| 9 | 0110-559 | SHROUD ASSY SIDE GAS TANK-LEFT | 1 | $40.95 | |
| 11 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 12 | 0123-352 | WSHR,FLAT .129/.133X5/16 X 22 GA Z&Y | 1 | $0.95 | |
| 13 | 8060-426 | RIVET,BLIND-DH AA54 BLK | 1 | $0.12 | |
| 14 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 17 | 0109-288 | BULB,BRAKE LIGHT | 1 | $2.95 | |
| 22 | 0123-254 | WASHER,FLAT 11/64X1/2 RUBB | 1 | $0.12 | |
| 23 | 0123-490 | NUT,SPEED 5/32 | 1 | $1.50 | |
| 29 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 30 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 |
