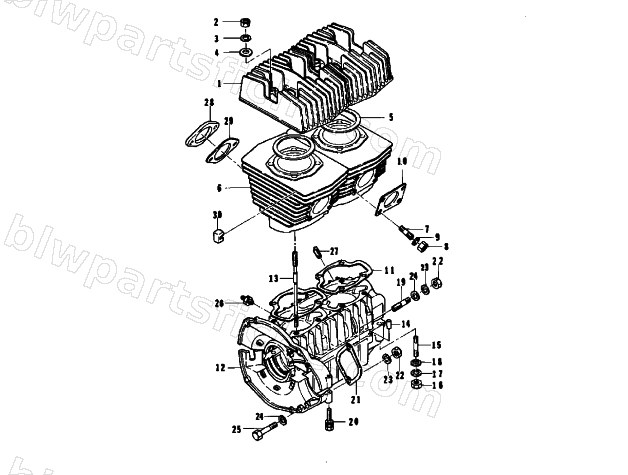

1974 Arctic Cat EL TIGRE 440 — CRANKCASE AND CYLINDER
1974 EL TIGRE 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3007-416 | NUT | 1 | $2.75 | |
| 6 | 3001-096 | CYLINDER | 1 | $695.95 | |
| 7 | 3001-098 | STUD,6MM-1.0X27.5MM LONG | 1 | $3.95 | |
| 9 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 11 | 3001-100 | GASKET,CYL BASE | 1 | $5.95 | |
| 18 | 3423-204 | WASHER | 1 | $1.95 | |
| 19 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 25 | 3004-414 | BOLT, 8X70 | 1 | $3.85 |
