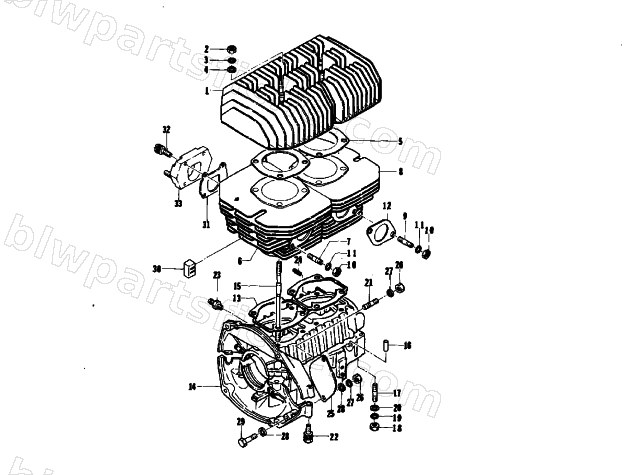

1974 Arctic Cat EL TIGRE 340 — CRANKCASE AND CYLINDER
1974 EL TIGRE 340
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3007-416 | NUT | 1 | $2.75 | |
| 5 | 3000-960 | GASKET,HEAD | 1 | $74.95 | |
| 7 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 11 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 12 | 3000-141 | GASKET,EXHAUST | 1 | $25.95 | |
| 13 | 3000-714 | GASKET,CYL BASE | 1 | $21.95 | |
| 20 | 3423-204 | WASHER | 1 | $1.95 | |
| 29 | 3004-414 | BOLT, 8X70 | 1 | $3.85 | |
| 31 | 3000-654 | GASKET,INLET | 1 | $0.85 |
