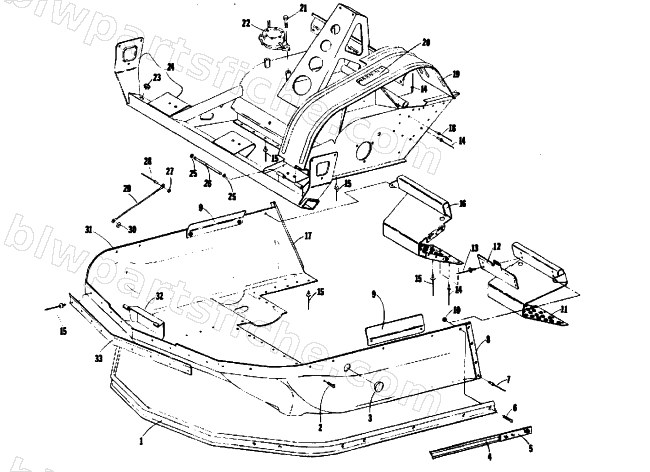

1974 Arctic Cat EL TIGRE 295 — BELLY PAN AND FRONT FRAME
1974 EL TIGRE 295
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8017-610 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 BLK Z | 1 | $5.92 | |
| 4 | 0106-977 | STRIP BUMPER-50 FT | 1 | $360.95 | |
| 7 | 8060-426 | RIVET,BLIND-DH AA54 BLK | 1 | $0.12 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 13 | 8061-486 | RIVET,BLIND-LF SS54 ZINC | 1 | $1.09 | |
| 15 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 18 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 21 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 22 | 0109-638 | FUEL PUMP(DF52-21-D) | 1 | $152.95 | |
| 23 | 0105-239 | BUSHING FLANGED | 1 | $25.95 | |
| 25 | 0123-551 | E-RING,EXTERNAL .250 | 1 | $1.95 | |
| 27 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 29 | 0109-135 | HOOD CABLE - 15" | 1 | $7.95 | |
| 30 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 |
