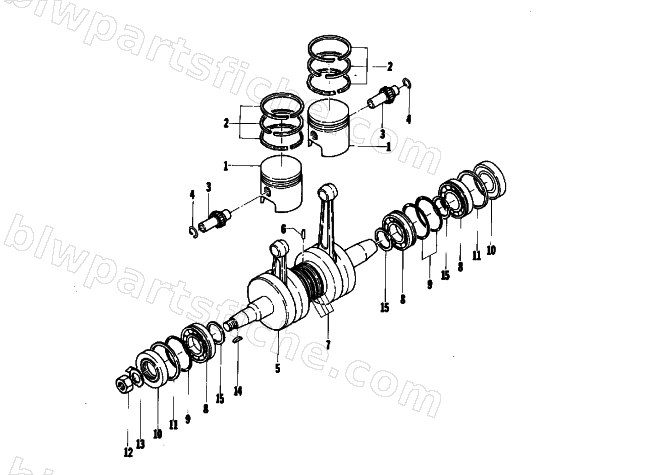

1974 Arctic Cat CHEETAH 340 — PISTON AND CRANKSHAFT
1974 CHEETAH 340
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3000-218 | PISTON | 1 | $157.95 | |
| 4 | 3000-151 | CIRCLIP,PISTON PIN | 1 | $2.95 | |
| 8 | 3001-438 | BEARING 6206NC3 | 1 | $69.95 | |
| 11 | 3000-156 | WASHER | 1 | $1.95 | |
| 12 | 3000-258 | NUT,18MM | 1 | $0.15 | |
| 13 | 3000-157 | WASHER | 1 | $1.19 | |
| 14 | 3000-267 | KEY | 1 | $5.95 |
