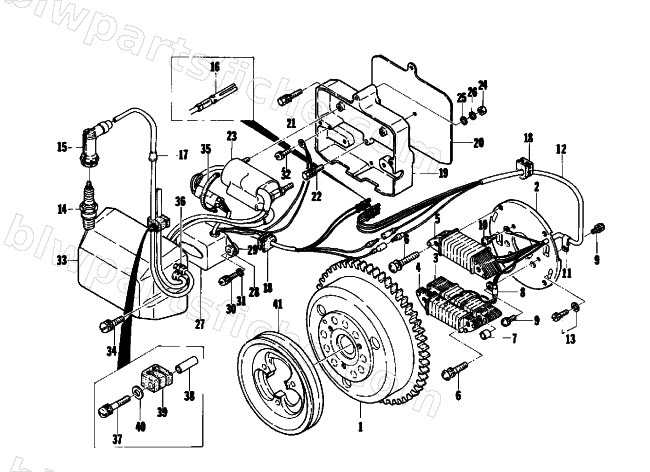

1974 Arctic Cat CHEETAH 340 CDI — MAGNETO
1974 CHEETAH 340 CDI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3001-052 | BASE | 1 | $57.95 | |
| 4 | 3001-054 | COIL SET, PULSING | 1 | $182.95 | |
| 5 | 3001-338 | COIL,LIGHTING | 1 | $205.95 | |
| 14 | 0217-029 | SPARK PLUG B8ES | 1 | $4.95 | |
| 15 | 3001-431 | CAP,PLUG | 1 | $30.95 | |
| 16 | 0109-526 | SOCKET 60619-1 | 1 | $0.85 | |
| 26 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 27 | 3001-462 | CDI UNIT | 1 | $826.95 | |
| 28 | 3001-069 | GROMMET | 1 | $0.26 | |
| 31 | 3003-023 | WASHER, FLAT,5MM | 1 | $1.95 | |
| 37 | 3000-456 | SCREW 6 X 40 | 1 | $0.75 |
