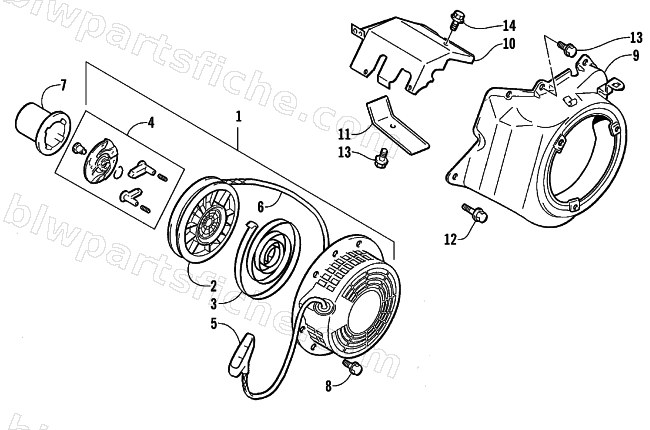

RECOIL STARTER ASSEMBLY
1999 AC7500GD2E
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-601 | STARTER ASSY, RECOIL | 1 | $289.95 | |
| 2 | 0693-602 | REEL, STARTER | 1 | $34.95 | |
| 3 | 0693-669 | SPRING,SPIRAL | 1 | $37.95 | |
| 4 | 0693-256 | RATCHET SET | 1 | $24.77 | |
| 5 | 0693-257 | GRIP ASSY. | 1 | $27.95 | |
| 6 | 3006-889 | ROPE,STARTER-C.T.L(6MM DIA)(203 CM) | 1 | $27.95 | |
| 7 | 0693-604 | PULLEY, STARTER | 1 | $39.95 | |
| 8 | 0693-246 | BOLT,6MM | 1 | $4.68 | |
| 9 | 0693-598 | COVER, COOLING FAN | 1 | $166.95 | |
| 10 | 0693-599 | COWLING, VENTILATION UPPER | 1 | $159.95 | |
| 11 | 0693-600 | COWLING, VENTILATION LOWER | 1 | $11.86 | |
| 12 | 0693-243 | BOLT | 1 | $2.75 | |
| 13 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 14 | 0693-318 | BOLT,M6X10 | 1 | $4.29 |
