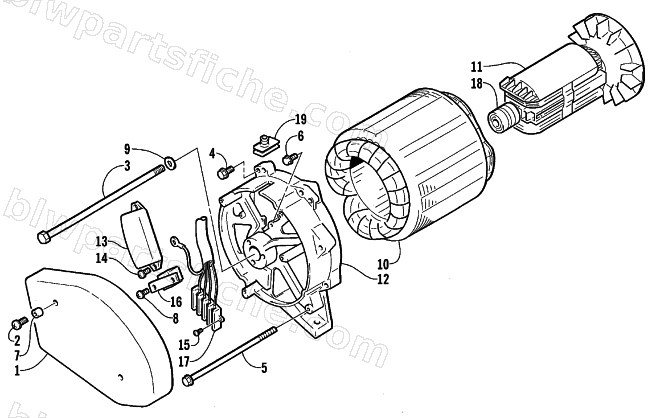

GENERATOR ASSEMBLY
1999 AC7500GD2E
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-639 | COVER, REAR HOUSING | 1 | $132.95 | |
| 2 | 0693-672 | SCREW M4X16 | 1 | $4.29 | |
| 3 | 0693-551 | BOLT 10X270 | 1 | $37.95 | |
| 4 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 5 | 0693-553 | BOLT 6X195 | 1 | $5.95 | |
| 6 | 0693-349 | BOLT,M5X10 | 1 | $2.09 | |
| 7 | 0693-557 | SPACER, M5.5X8X7.5 | 1 | $3.69 | |
| 8 | 0693-673 | SCREW,M4X16 | 1 | $2.09 | |
| 9 | 3007-410 | WASHER | 1 | $2.75 | |
| 10 | 0693-674 | STATOR | 1 | $1,800.95 | |
| 11 | 0693-675 | ROTOR | 1 | $1,693.95 | |
| 12 | 0693-676 | BRACKET,REAR | 1 | $199.95 | |
| 13 | 1691-028 | VOLTAGE, REGULATOR | 1 | $370.95 | |
| 14 | 0693-678 | BOLT(5X14) | 1 | $2.79 | |
| 15 | 0693-679 | BOLT | 1 | $6.95 | |
| 16 | 1691-029 | BRUSH, GENERATOR | 1 | $101.95 | |
| 17 | 0693-681 | TERMINAL | 1 | $67.95 | |
| 18 | 3402-553 | BEARING, M20 X 47 X 14 | 1 | $69.95 | |
| 19 | 0693-352 | GROMMET | 1 | $27.95 |
