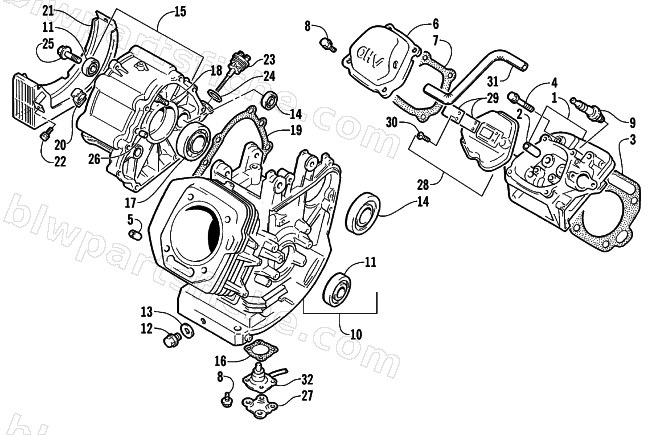

1999 Arctic Cat AC7500GD2E — CYLINDER AND CRANKCASE ASSEMBLY
1999 AC7500GD2E
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-565 | HEAD ASSY, CYLINDER(7500 GEN) | 1 | $446.95 | |
| 2 | 0691-531 | GUIDE, VALVE, OVERSIZE .3 | 1 | $34.95 | |
| 3 | 0693-567 | GASKET, CYLINDER HEAD | 1 | $27.95 | |
| 4 | 3004-425 | BOLTM10X85 | 1 | $4.95 | |
| 5 | 3004-975 | PIN, CYLINDER KNOCK(ALIGMENT) | 1 | $2.61 | |
| 6 | 0693-566 | COVER, CYLINDER HEAD | 1 | $19.95 | |
| 7 | 0691-056 | GASKET, CYLINDER HEAD COVER | 1 | $15.95 | |
| 8 | 0693-307 | BOLT,M6X16 | 1 | $3.16 | |
| 9 | 0217-703 | SPARK PLUG, BPR6ES | 1 | $4.54 | |
| 10 | 0693-568 | CYLINDER ASSY (AC7500G GEN) | 1 | $1,029.95 | |
| 11 | 0693-562 | OIL SEAL, M35X47X6 | 1 | $27.95 | |
| 12 | 3423-095 | PLUG, OIL GAL(BOLT),M12X16(R/B 3423-912) | 1 | $6.95 | |
| 13 | 0693-455 | GASKET (M12.2X21X2) | 1 | $3.59 | |
| 14 | 3003-321 | BEARING,RIGHT(BALL)(5.93MM DIA) | 1 | $26.95 | |
| 15 | 0693-569 | COVER ASSY, CRANKCASE SIDE | 1 | $379.95 | |
| 16 | 1691-153 | GASKET, OIL LEVEL | 1 | $19.25 | |
| 17 | 0693-560 | BEARING,BALL,M35 | 1 | $69.95 | |
| 18 | 0691-142 | SHAFT, GOVERNOR GEAR | 1 | $10.95 | |
| 19 | 0693-571 | GASKET, CRANKCASE | 1 | $31.95 | |
| 20 | 0693-570 | GROMMET, CRANKCASE SIDE COVER | 1 | $7.95 | |
| 21 | 0693-572 | COVER ASSY, AIR GUIDE | 1 | $97.95 | |
| 22 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 23 | 0691-064 | GAUGE, ENGINE OIL LEVEL | 1 | $17.95 | |
| 24 | 3423-274 | O RING,D:3.1ID:26.4 | 1 | $6.47 | |
| 25 | 3007-396 | BOLT, CYLINDER HEAD-M8X40 | 1 | $4.68 | |
| 26 | 3008-199 | PIN, KNOCK(ALIGNMENT) | 1 | $3.16 | |
| 27 | 0691-175 | PLATE, SENSOR LEAD GUARD | 1 | $7.95 | |
| 28 | 0693-573 | BODY ASSY, AIR BREATHER | 1 | $41.95 | |
| 29 | 0693-226 | VALVE SET, REED | 1 | $30.95 | |
| 30 | 0693-305 | SCREW,M4X8 | 1 | $1.95 | |
| 31 | 0693-362 | HOSE, AIR BREATHER,M7X11X600 | 1 | $46.95 | |
| 32 | 0691-173 | SENSOR COMP, OIL LEVEL | 1 | $147.95 |
