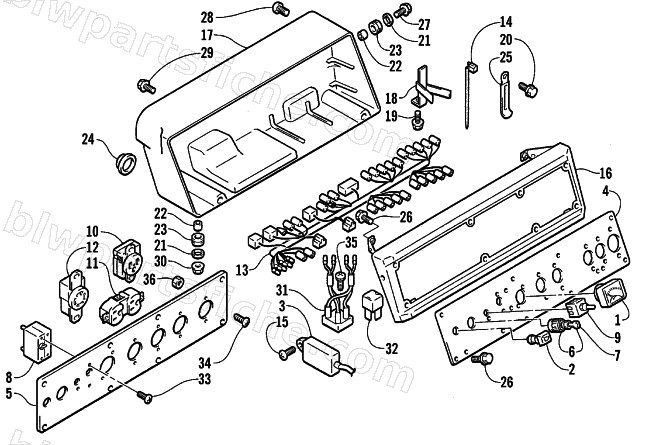

CONTROL BOX ASSEMBLY
1999 AC7500GD2E
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0691-929 | METER, VOLTAGE | 1 | $164.95 | |
| 2 | 0691-324 | LAMP ASSY, OIL LEVEL | 1 | $54.95 | |
| 3 | 0693-626 | UNIT, OIL LEVEL ALARM | 1 | $124.95 | |
| 4 | 0693-640 | PANEL COMP, CONTROL | 1 | $110.95 | |
| 5 | 0693-641 | PLATE, PANEL | 1 | $97.95 | |
| 6 | 0693-644 | SWITCH ASSY, ENGINE | 1 | $242.95 | |
| 7 | 0693-645 | KEY, ENGINE SWITCH | 1 | $14.95 | |
| 8 | 0693-646 | CIRCUIT BREAKER | 1 | $399.95 | |
| 9 | 0693-647 | SWITCH ASSY, VOLTAGE SELECT | 1 | $576.95 | |
| 11 | 0691-209 | RECEPTACLE | 1 | $129.95 | |
| 12 | 0693-648 | RECEPTACLE | 1 | $247.95 | |
| 13 | 0693-649 | HARNESS, CONTROL | 1 | $870.95 | |
| 14 | 3008-044 | CLAMP, L:125,M14 | 1 | $2.69 | |
| 15 | 3007-511 | SCREW | 1 | $2.47 | |
| 16 | 0693-642 | PANEL, FRONT | 1 | $255.95 | |
| 17 | 0693-643 | PANEL, CONTROL REAR | 1 | $117.95 | |
| 18 | 0693-460 | BRACKET, WIRE HARNESS HOLD | 1 | $10.95 | |
| 19 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 20 | 0693-484 | BOLT (8X20.5) | 1 | $3.99 | |
| 21 | 3004-639 | WASHER 65X20X1.2 | 1 | $2.49 | |
| 22 | 0691-373 | SPACER, M6.1X9X7.5 | 1 | $2.19 | |
| 23 | 0691-223 | CUSHION | 1 | $4.95 | |
| 24 | 0693-510 | GROMMET,M27 | 1 | $3.99 | |
| 25 | 0693-563 | CLAMP, L:62,M8 | 1 | $3.09 | |
| 26 | 3423-885 | BOLT,RECOIL STARTER-6X12 | 1 | $2.61 | |
| 27 | 3007-392 | BOLT | 1 | $3.95 | |
| 28 | 0693-505 | SCREW,M6X16 | 1 | $1.95 | |
| 29 | 0693-363 | BOLT, 6X16 | 1 | $2.39 | |
| 30 | 3007-373 | NUT | 1 | $3.16 | |
| 31 | 0693-196 | RECTIFIER,ASSY | 1 | $110.95 | |
| 32 | 0693-624 | DIODE | 1 | $27.95 | |
| 33 | 0693-549 | SCREW,M3X6 | 1 | $2.79 | |
| 34 | 3004-566 | SCREW,M4X10 | 1 | $2.19 | |
| 35 | 0693-671 | SCREW,M4X16 | 1 | $2.29 | |
| 36 | 0693-342 | NUT,4MM | 1 | $4.29 |
