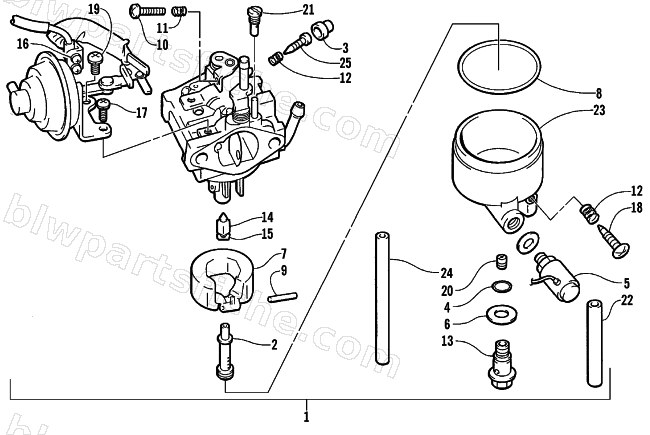

CARBURETOR ASSEMBLY
1999 AC7500GD2E
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-586 | CARBURETOR ASSY | 1 | $565.95 | |
| 2 | 0693-686 | NOZZLE,MAIN | 1 | $31.95 | |
| 3 | 0693-540 | CAP, ADJUSTER | 1 | $5.95 | |
| 5 | 1691-161 | SOLENOID | 1 | $189.95 | |
| 6 | 0693-151 | PACKING | 1 | $7.95 | |
| 7 | 0691-096 | FLOAT | 1 | $54.95 | |
| 8 | 6505-286 | GASKET FLOAT CHAMBER | 1 | $4.54 | |
| 9 | 0691-098 | PIN, FLOAT | 1 | $5.95 | |
| 10 | 0693-439 | SCREW,M3X10 | 1 | $2.29 | |
| 11 | 6505-289 | SPRING | 1 | $4.54 | |
| 12 | 6505-291 | SPRING | 1 | $20.63 | |
| 13 | 0693-689 | HOLDER, JET | 1 | $29.95 | |
| 14 | 0693-663 | VALVE,NEEDLE | 1 | $41.95 | |
| 15 | 0693-664 | CLIP,NEEDLE | 1 | $10.95 | |
| 16 | 0693-665 | SCREW,M3X7 | 1 | $2.79 | |
| 17 | 0693-351 | SCREW,M4X8 | 1 | $3.69 | |
| 18 | 3004-603 | SCREW | 1 | $8.21 | |
| 19 | 0693-666 | SCREW,M5X8 | 1 | $2.39 | |
| 20 | 6505-551 | VALVE,NEEDLE | 1 | $53.95 | |
| 21 | 6505-104 | FLOAT ARM,CARBURETOR | 1 | $19.95 | |
| 22 | 0693-691 | HOSE | 1 | $8.95 | |
| 23 | 0693-690 | CHAMBER,FLOAT | 1 | $61.95 |
