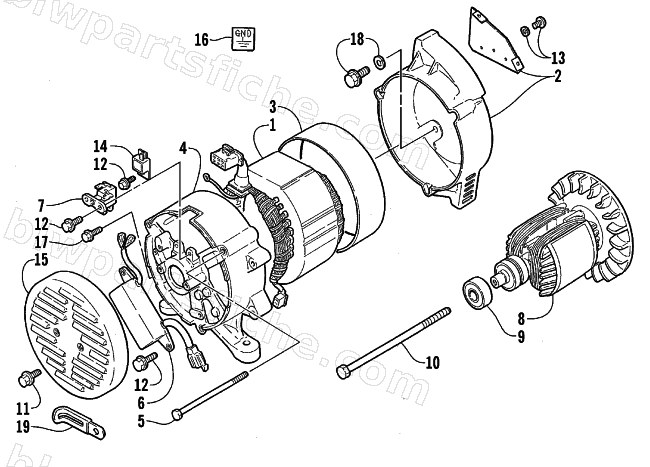

1999 Arctic Cat AC2500GD — GENERATOR ASSEMBLY (S/N SV233-100001 & Up)
1999 AC2500GD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-759 | STATOR | 1 | $1,672.95 | |
| 2 | 0693-350 | BRACKET, FRONT | 1 | $251.95 | |
| 4 | 0693-761 | BRACKET, REAR | 1 | $293.95 | |
| 5 | 0691-195 | BOLT, STATOR 6X160 | 1 | $21.95 | |
| 6 | 0693-763 | VOLTAGE, REGULATOR | 1 | $638.95 | |
| 7 | 0693-764 | BRUSH ASSY | 1 | $124.95 | |
| 8 | 0693-765 | ROTOR ASSY | 1 | $881.95 | |
| 9 | 0693-766 | BEARING | 1 | $49.95 | |
| 11 | 0693-349 | BOLT,M5X10 | 1 | $2.09 | |
| 12 | 0693-368 | BOLT, GOV SPRING HOOK-M5X12 | 1 | $3.16 | |
| 13 | 0693-351 | SCREW,M4X8 | 1 | $3.69 | |
| 14 | 0693-768 | DIODE | 1 | $81.95 | |
| 15 | 0693-355 | COVER, REAR | 1 | $111.95 | |
| 16 | 0693-043 | LABEL, GROUND | 1 | $3.09 | |
| 17 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 18 | 3004-560 | BOLT,M8X25 | 1 | $5.95 | |
| 19 | 0693-274 | CLAMP,M6 | 1 | $2.69 |
