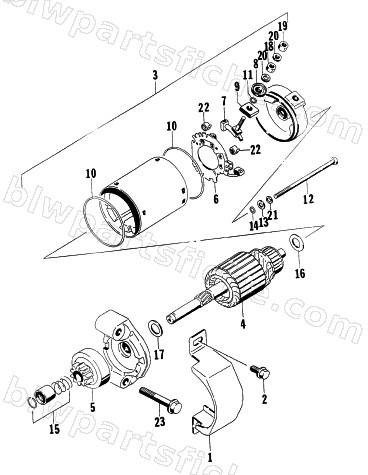

1997 Arctic Cat 4000GD — STARTING MOTOR ASSEMBLY
1997 4000GD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-180 | COVER,STARTER | 1 | $17.95 | |
| 2 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 3 | 0693-067 | MOTOR, STARTER | 1 | $643.95 | |
| 4 | 0693-485 | ARMATURE, STARTER | 1 | $317.95 | |
| 5 | 0693-486 | CLUTCH SUB ASSY | 1 | $184.95 | |
| 6 | 0693-068 | HOLDER, BRUSH | 1 | $94.95 | |
| 7 | 0693-069 | BRUSH ASSY | 1 | $29.95 | |
| 8 | 0693-183 | BRUSH (ND) | 1 | $7.95 | |
| 9 | 0693-184 | BUSHING (ND) | 1 | $16.95 | |
| 10 | 3004-618 | O-RING (ND) | 1 | $11.95 | |
| 11 | 3004-619 | O-RING (ND) | 1 | $5.95 | |
| 12 | 0693-487 | SCREW | 1 | $12.95 | |
| 13 | 3004-621 | WASHER | 1 | $4.29 | |
| 14 | 3004-622 | O-RING | 1 | $6.20 | |
| 15 | 0693-185 | STOPPER SET,PINIOW | 1 | $27.95 | |
| 16 | 0693-488 | SHIM, NO.2 | 1 | $5.95 | |
| 17 | 3004-623 | WASHER (ND) | 1 | $4.95 | |
| 18 | 0693-489 | NUT,6MM | 1 | $3.95 | |
| 20 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 21 | 3004-972 | WASHER, LOCK,5MM | 1 | $1.95 | |
| 22 | 3004-625 | SPRING | 1 | $4.95 | |
| 23 | 3004-626 | BOLT,8MM | 1 | $3.39 |
