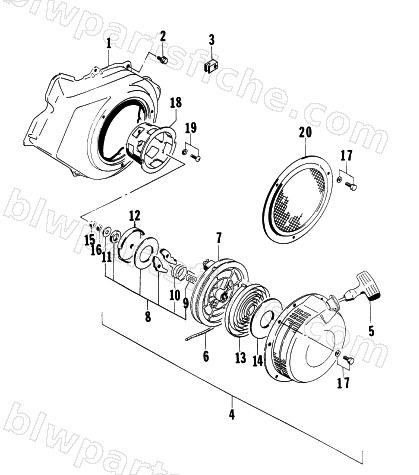

1997 Arctic Cat 4000GD — RECOIL STARTER ASSEMBLY
1997 4000GD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-443 | COVER, COOLING FAN | 1 | $97.95 | |
| 2 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 3 | 0693-472 | GROMMET, LEAD WIRE | 1 | $4.39 | |
| 4 | 0691-123 | STARTER ASSY, RECOIL | 1 | $177.95 | |
| 5 | 0693-257 | GRIP ASSY. | 1 | $27.95 | |
| 6 | 0691-137 | ROPE, STARTER 6.0X1620 | 1 | $10.59 | |
| 7 | 0691-124 | REEL, STARTER | 1 | $44.95 | |
| 8 | 0693-444 | RATCHET SET | 1 | $49.95 | |
| 9 | 0691-130 | SPRING, FRICTION | 1 | $5.95 | |
| 10 | 0691-131 | SPRING, RETURN | 1 | $7.95 | |
| 12 | 0691-129 | PLATE, FRICTION | 1 | $9.95 | |
| 13 | 3001-077 | SPRING,RECOIL | 1 | $54.95 | |
| 14 | 0691-126 | PLATE, SLIDE A | 1 | $6.95 | |
| 15 | 3007-703 | NUT,6MM | 1 | $3.85 | |
| 16 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 17 | 0693-246 | BOLT,6MM | 1 | $4.68 | |
| 18 | 0691-136 | PULLEY, STARTER | 1 | $20.95 | |
| 19 | 3007-689 | SCREW,M6X16 | 1 | $3.85 | |
| 20 | 0693-473 | GUARD, COOLING FAN | 1 | $123.95 |
