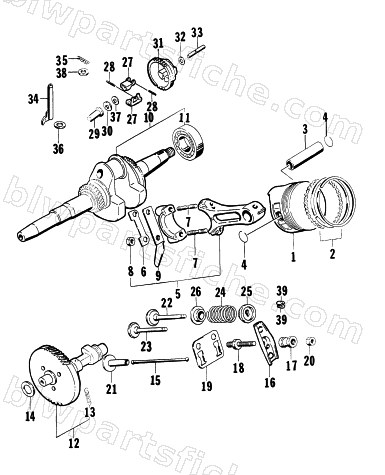

PISTON AND CRANKSHAFT

1997 4000GD

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	0693-422	PISTON	1	$141.95
1	0693-423	PISTON (0S:0.25)	1	$5.95
1	0693-424	PISTON (0S:0.50)	1	$94.95
2	0693-425	RING SET, PISTON	1	$99.95
2	0693-426	RING SET, PISTON (0S:0.25)	1	$69.95
2	0693-427	RING SET, PISTON (0S:0.50)	1	$94.95
3	0691-073	PIN, PISTON	1	$24.95
4	3003-537	CIRCLIP,PISTON PIN,M18	1	$2.75
5	0691-074	CONNROD ASSY	1	$159.95
6	0691-075	PLATE, LOCK	1	$3.69
7	0691-076	BOLT, CONNROD STUD	1	$27.95
8	3007-416	NUT	1	$2.75
9	0693-428	PLATE, SPLASHER	1	$24.95
10	0693-429	CRANKSHAFT	1	$489.95
11	0691-775	BEARING,BALL(30X62X16)	1	$47.95
12	0693-430	CAMSHAFT	1	$362.95
13	0693-431	SPRING	1	$8.21
14	0691-778	WASHER,M16X26	1	$2.39
15	0691-081	ROD, PUSH	1	$14.95
16	1691-143	ROCKER ARM	1	$7.95
17	0691-088	PIVOT	1	$12.95
18	1691-148	BOLT,PIVOT STUD	1	$7.95
19	0691-090	GUIDE, PUSH ROD	1	$6.95
20	0691-016	NUT, 6MM	1	$2.75
21	0691-080	TAPPET (45.5MM)	1	$27.95
23	0693-433	VALVE, EXHAUST	1	$67.95
24	0691-084	SPRING, VALVE	1	$10.95
25	0693-434	RETAINER, VALVE SPRING	1	$14.89
26	0691-086	GUIDE, SPRING	1	$4.29
27	0691-138	ARM, CENTRIFUGAL	1	$3.69
28	0693-436	PIN, CENTRIFUGAL ARM	1	$0.79
29	0691-876	SLIDER, GOVERNOR	1	$7.95
30	0691-777	WASHER,M6X16	1	$2.39
31	0693-732	GEAR SET,GOVERNOR	1	$41.95
32	3007-502	WASHER,OIL SEPARATOR PLATE	1	$2.75
33	0691-142	SHAFT, GOVERNOR GEAR	1	$10.95
34	0693-464	VALVE ASSY, BVS	1	$109.95
35	0691-035	SNAP,M8	1	$2.19
36	0691-879	WASHER	1	$2.49
37	0691-880	WASHER	1	$2.89
38	3423-204	WASHER	1	$1.95
39	0693-435	COTTER, VALVE	1	$10.95
