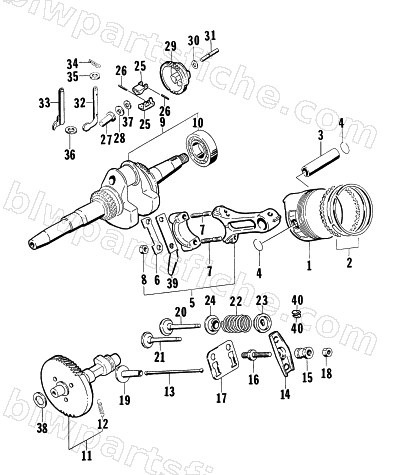

1997 Arctic Cat 4000G2 — PISTON AND CRANKSHAFT
1997 4000G2
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-422 | PISTON | 1 | $141.95 | |
| 1 | 0693-423 | PISTON (0S:0.25) | 1 | $5.95 | |
| 1 | 0693-424 | PISTON (0S:0.50) | 1 | $94.95 | |
| 2 | 0693-425 | RING SET, PISTON | 1 | $99.95 | |
| 2 | 0693-426 | RING SET, PISTON (0S:0.25) | 1 | $69.95 | |
| 2 | 0693-427 | RING SET, PISTON (0S:0.50) | 1 | $94.95 | |
| 3 | 0691-073 | PIN, PISTON | 1 | $24.95 | |
| 4 | 3003-537 | CIRCLIP,PISTON PIN,M18 | 1 | $2.75 | |
| 5 | 0691-074 | CONNROD ASSY | 1 | $159.95 | |
| 6 | 0691-075 | PLATE, LOCK | 1 | $3.69 | |
| 7 | 0691-076 | BOLT, CONNROD STUD | 1 | $27.95 | |
| 8 | 3007-416 | NUT | 1 | $2.75 | |
| 9 | 0693-429 | CRANKSHAFT | 1 | $489.95 | |
| 10 | 0691-775 | BEARING,BALL(30X62X16) | 1 | $47.95 | |
| 11 | 0693-430 | CAMSHAFT | 1 | $362.95 | |
| 12 | 0693-431 | SPRING | 1 | $8.21 | |
| 13 | 0691-081 | ROD, PUSH | 1 | $14.95 | |
| 14 | 1691-143 | ROCKER ARM | 1 | $7.95 | |
| 15 | 0691-088 | PIVOT | 1 | $12.95 | |
| 16 | 1691-148 | BOLT,PIVOT STUD | 1 | $7.95 | |
| 17 | 0691-090 | GUIDE, PUSH ROD | 1 | $6.95 | |
| 18 | 0691-016 | NUT, 6MM | 1 | $2.75 | |
| 19 | 0691-080 | TAPPET (45.5MM) | 1 | $27.95 | |
| 21 | 3639-129 | KIT, EXHAUST VALVE | 1 | $84.95 | |
| 22 | 0691-084 | SPRING, VALVE | 1 | $10.95 | |
| 23 | 0691-085 | RETAINER, VALVE SPRING | 1 | $17.87 | |
| 24 | 0691-086 | GUIDE, SPRING | 1 | $4.29 | |
| 25 | 0691-138 | ARM, CENTRIFUGAL | 1 | $3.69 | |
| 26 | 0693-436 | PIN, CENTRIFUGAL ARM | 1 | $0.79 | |
| 27 | 0691-876 | SLIDER, GOVERNOR | 1 | $7.95 | |
| 28 | 0691-777 | WASHER,M6X16 | 1 | $2.39 | |
| 29 | 0693-732 | GEAR SET,GOVERNOR | 1 | $41.95 | |
| 30 | 3007-502 | WASHER,OIL SEPARATOR PLATE | 1 | $2.75 | |
| 31 | 0691-142 | SHAFT, GOVERNOR GEAR | 1 | $10.95 | |
| 32 | 0691-143 | SHAFT, THROTTLE RETURN | 1 | $10.95 | |
| 33 | 0691-878 | SHAFT, THROTTLE RETURN | 1 | $15.95 | |
| 34 | 0691-035 | SNAP,M8 | 1 | $2.19 | |
| 35 | 3423-204 | WASHER | 1 | $1.95 | |
| 36 | 0691-879 | WASHER | 1 | $2.49 | |
| 37 | 0691-880 | WASHER | 1 | $2.89 | |
| 38 | 0691-778 | WASHER,M16X26 | 1 | $2.39 | |
| 39 | 0693-428 | PLATE, SPLASHER | 1 | $24.95 | |
| 40 | 0693-435 | COTTER, VALVE | 1 | $10.95 |
