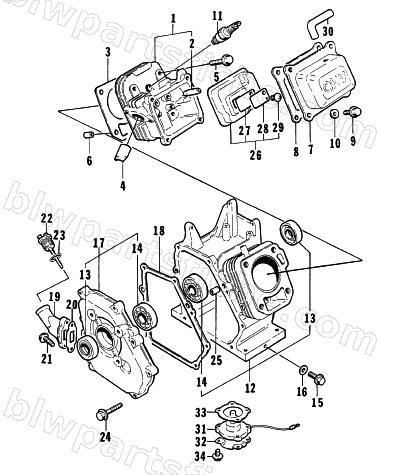

1997 Arctic Cat 2500GD — CYLINDER AND CRANKCASE ASSEMBLY
1997 2500GD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0693-224 | HEAD ASSY, CYLINDER(2500 GEN) | 1 | $238.95 | |
| 2 | 0691-545 | GUIDE, VALVE | 1 | $30.95 | |
| 4 | 0691-388 | GUIDE, EXHAUST | 1 | $9.95 | |
| 5 | 3007-238 | BOLT,EGR VALVE | 1 | $4.95 | |
| 6 | 3008-199 | PIN, KNOCK(ALIGNMENT) | 1 | $3.16 | |
| 7 | 0693-277 | COVER, CYLINDER HEAD | 1 | $61.95 | |
| 8 | 0691-387 | GASKET, CYLINDER HEAD COVER | 1 | $16.49 | |
| 9 | 0693-241 | BOLT, M6X12 | 1 | $3.16 | |
| 10 | 0693-251 | WASHER | 1 | $3.09 | |
| 11 | 0217-703 | SPARK PLUG, BPR6ES | 1 | $4.54 | |
| 12 | 0693-225 | CYLINDER ASSY (AC2500 GEN) | 1 | $774.95 | |
| 13 | 0691-491 | OIL SEAL | 1 | $17.95 | |
| 14 | 3004-209 | BEARING, BALANCER SHAFT-LH,BALL,M25X52X1 | 1 | $42.95 | |
| 15 | 0693-253 | PLUG,10MM | 1 | $4.40 | |
| 16 | 3002-276 | GASKET,IMPULSE,10MM | 1 | $3.16 | |
| 17 | 0693-278 | COVER ASSY, CRANKCASE SIDE | 1 | $214.95 | |
| 18 | 0691-834 | GASKET,CRANKCASE | 1 | $27.95 | |
| 19 | 0693-279 | CASE, FILLER OIL | 1 | $37.95 | |
| 20 | 0693-115 | GASKET,OIL FILLER CASE | 1 | $10.95 | |
| 21 | 0693-242 | BOLT, M6X23 | 1 | $2.95 | |
| 22 | 0691-835 | GAUGE, OIL LEVEL | 1 | $18.95 | |
| 23 | 0693-298 | O-RING D:2,4 ID:15.8 | 1 | $4.40 | |
| 24 | 0693-243 | BOLT | 1 | $2.75 | |
| 25 | 3005-206 | PIN (H:10),DOWEL | 1 | $3.30 | |
| 26 | 0691-393 | BODY ASSY, AIR BREATHER | 1 | $64.95 | |
| 27 | 0693-226 | VALVE SET, REED | 1 | $30.95 | |
| 29 | 0693-305 | SCREW,M4X8 | 1 | $1.95 | |
| 30 | 0693-306 | HOSE,600MM | 1 | $18.95 | |
| 31 | 0691-836 | SENSOR, OIL LEVEL | 1 | $126.95 | |
| 32 | 0691-175 | PLATE, SENSOR LEAD GUARD | 1 | $7.95 | |
| 33 | 1691-153 | GASKET, OIL LEVEL | 1 | $19.25 | |
| 34 | 0693-363 | BOLT, 6X16 | 1 | $2.39 |
